LEVERLINK ZV and VL Series Motobases - Category B

« Back

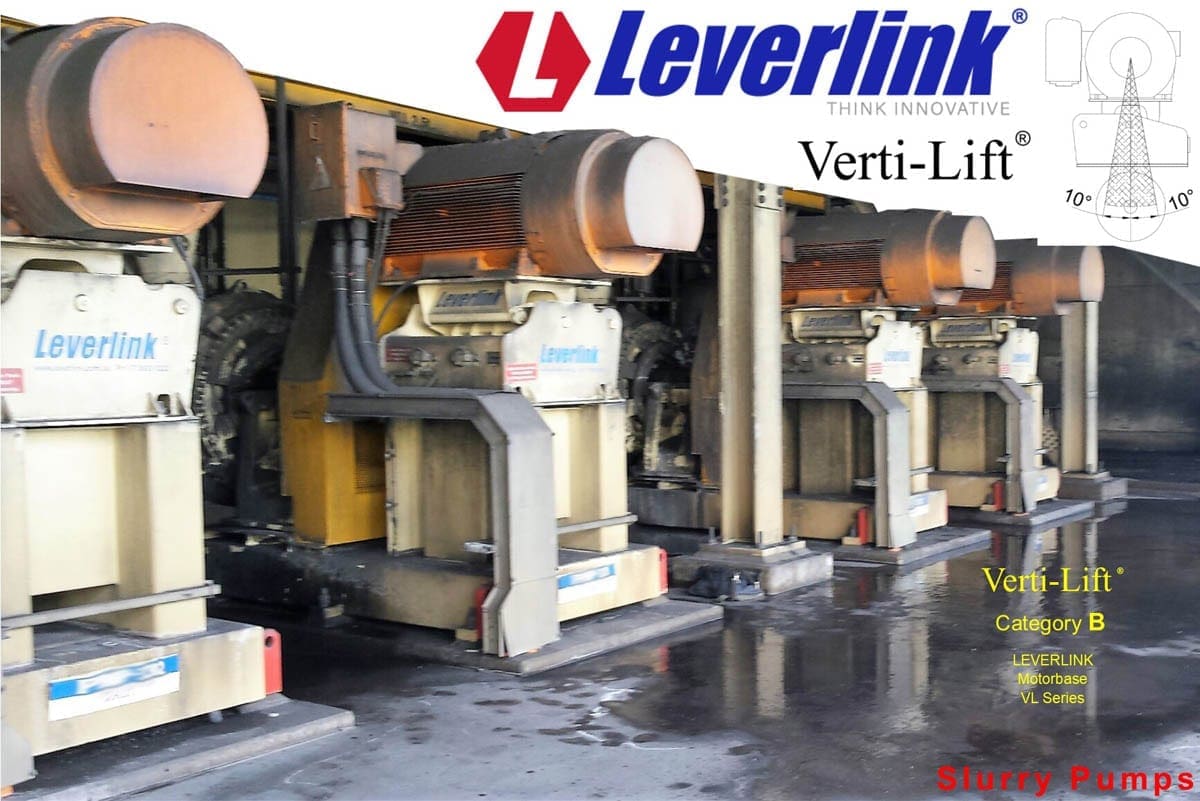

The Leverlink ZV and VL-Series motorbase. Models 3kW to 630kW. Category B - recommended for STATIC applications

Series orientation:

Poles:

kW:

Frame size:

ZV 4G-1

To suit the following electric motor:

4 pole:               5.5kW to 7.5kW

6 pole:               3kW to 5kW

Motor Frame:   D132S, D132M

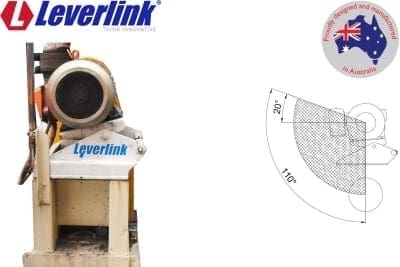

ZV 4G-2

To suit the following electric motor:

4 pole:              11kW to 15kW

6 pole:              7.5kW to 11kW

Motor Frame:  D160M, D160L

ZV 4G-3

To suit the following electric motor:

4 pole:               18.5kW to 22kW

6 pole:               15kW

Motor Frame:   D180M, D180L

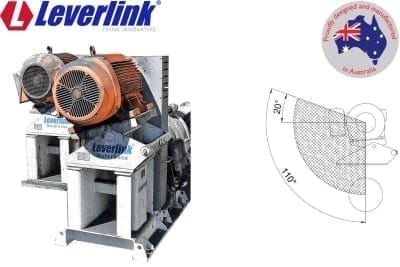

ZV 4G-4

To suit the following electric motor:

4 pole:               30kW

6 pole:               18.5kW

Motor Frame:   D200L

ZV 4G-5

To suit the following electric motor:

4 pole:               37kW to 45kW

6 pole:               30kW

Motor Frame:   D225S, D225M

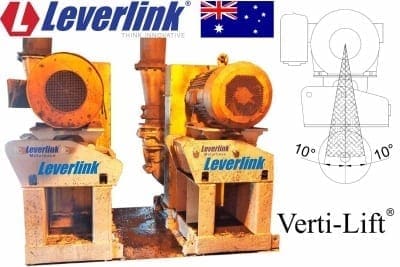

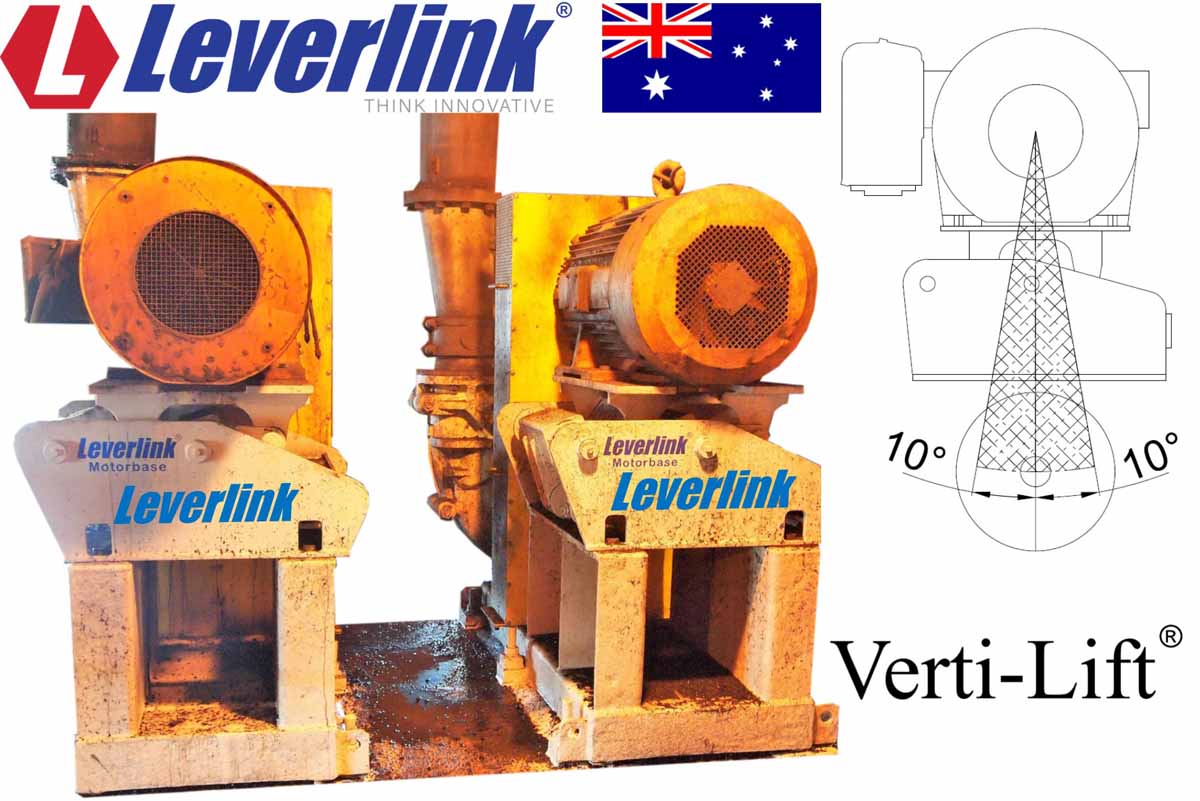

VL-301

To suit the following electric motor:

4 pole:               55kW

6 pole:               37kW

Motor Frame:   D250S

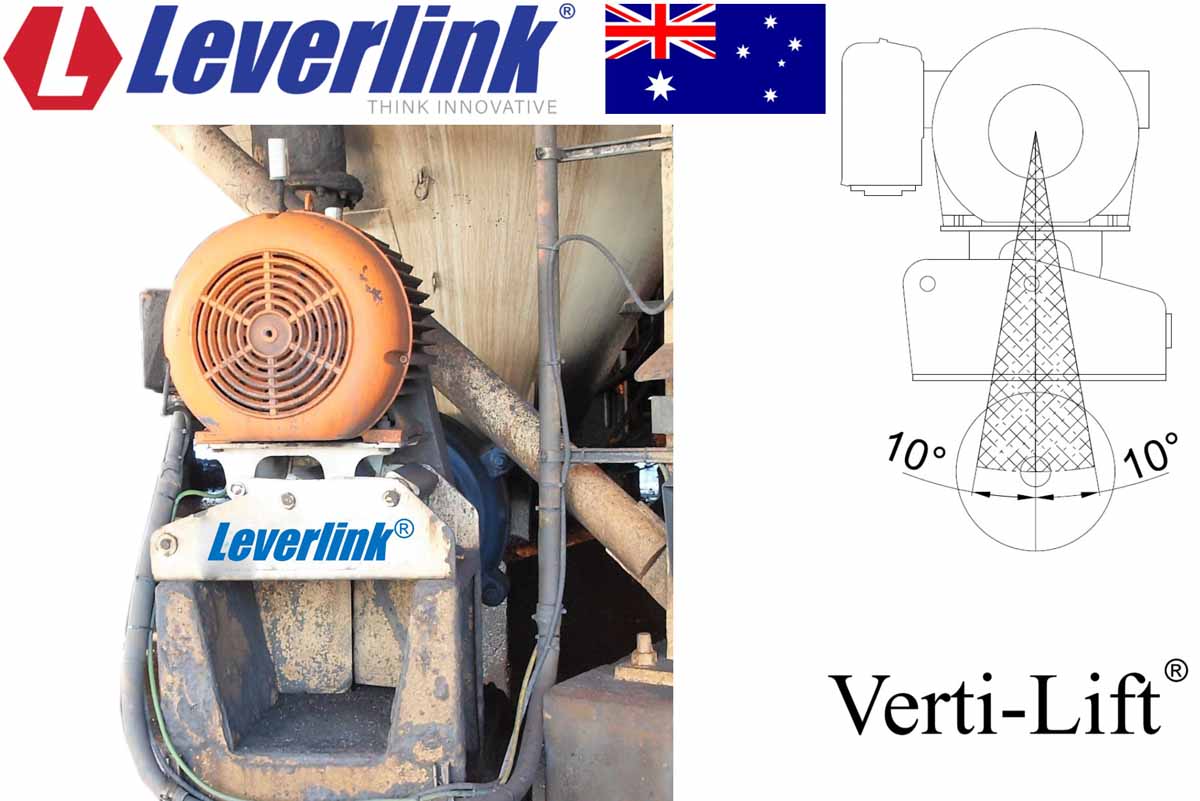

VL-302

To suit the following electric motor:

4 pole:               55kW to 75kW

6 pole:               37kW to 45kW

Motor Frame:   D250M

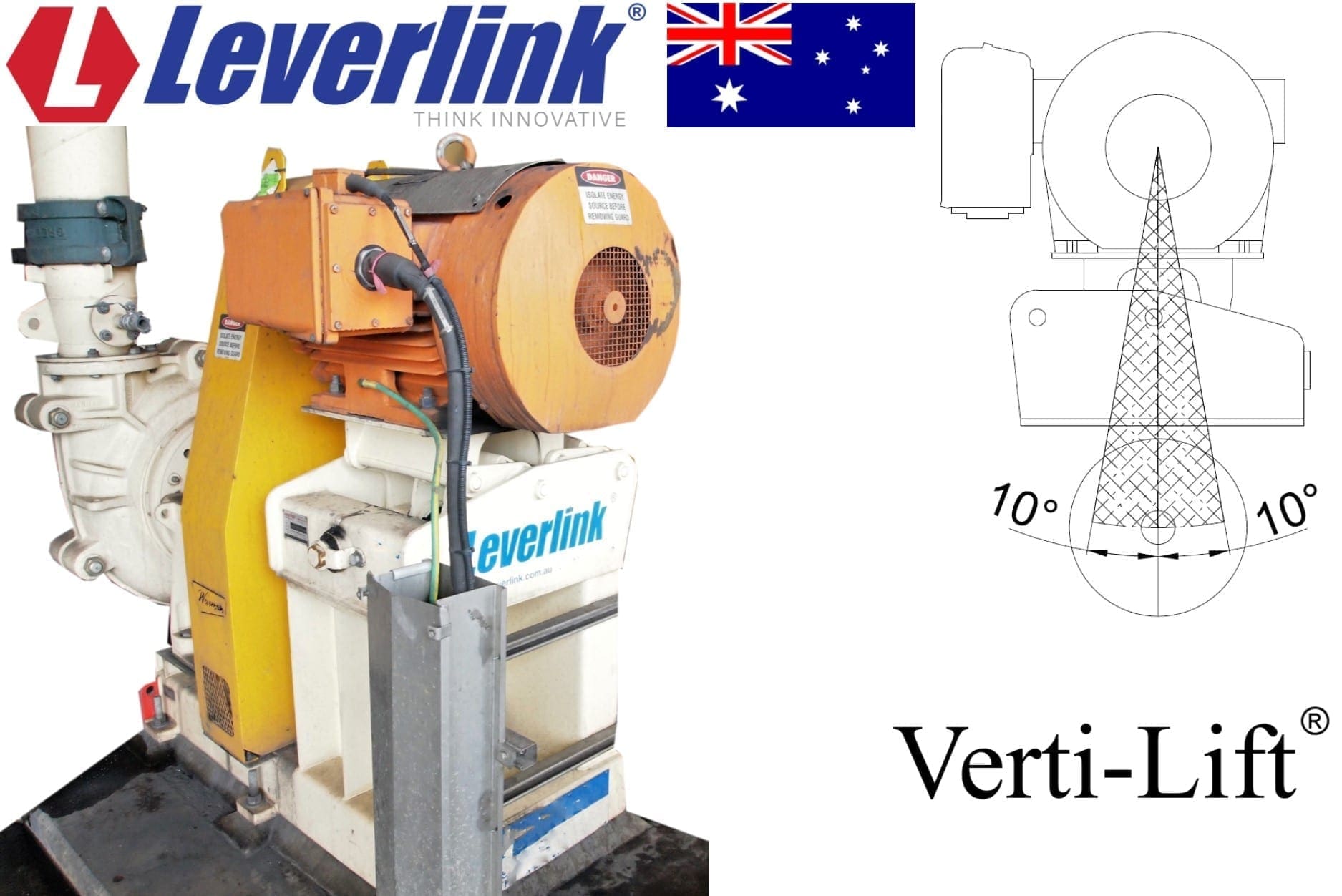

VL-303

To suit the following electric motor:

4 pole:               75kW to 90kW

6 pole:               45kW to 55kW

Motor Frame:   D280S

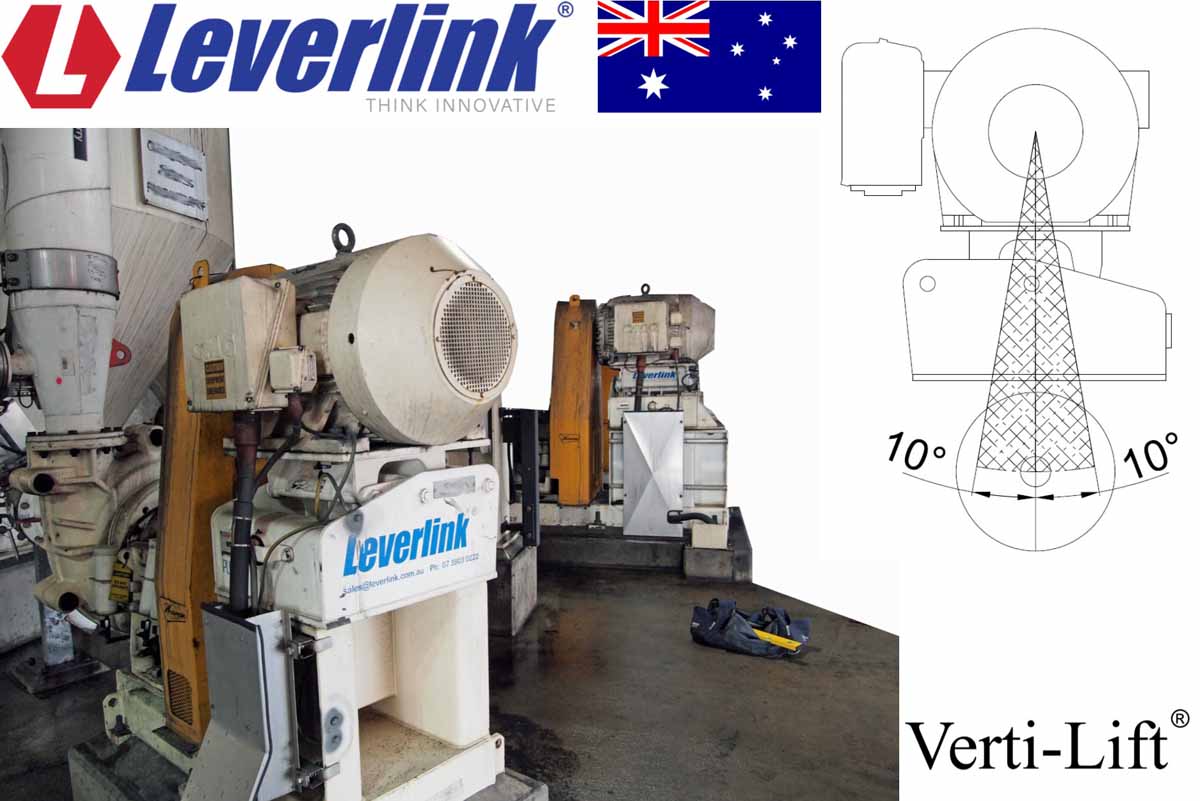

VL-304

To suit the following electric motor:

4 pole:               90kW to 110kW

6 pole:               55kW to 75kW

Motor Frame:   D280M

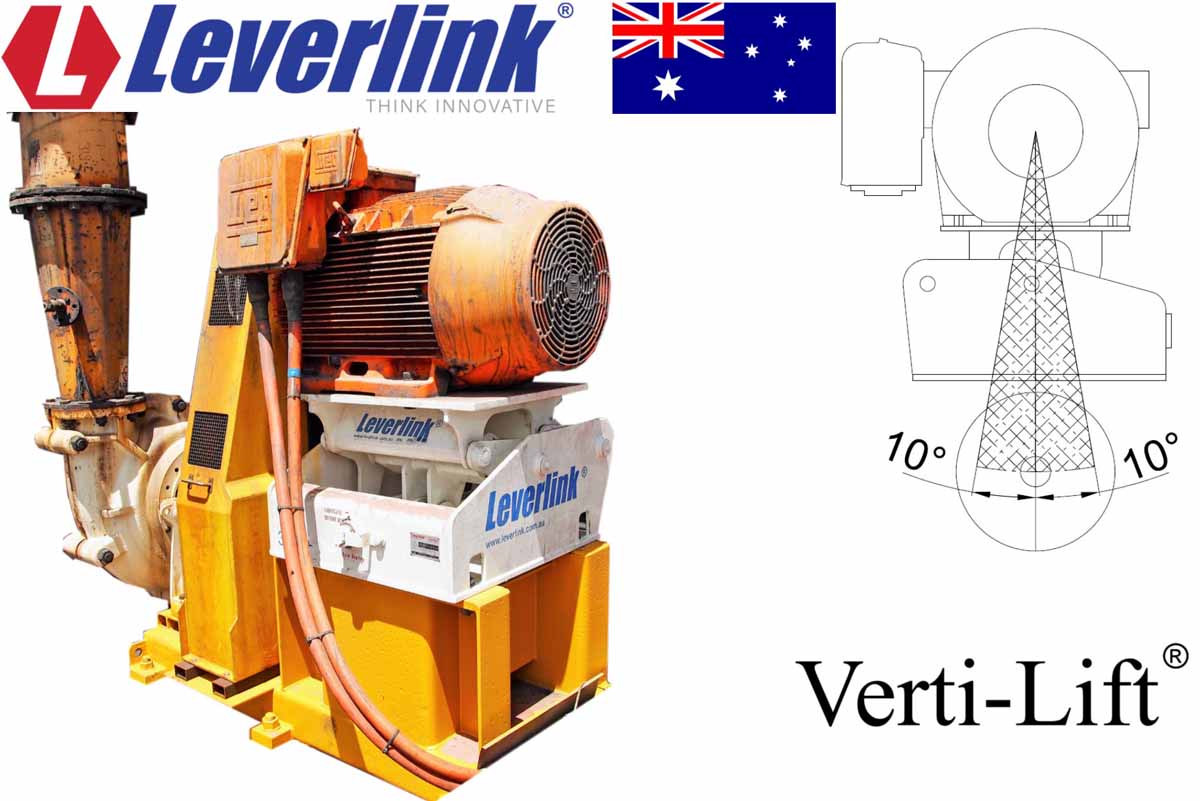

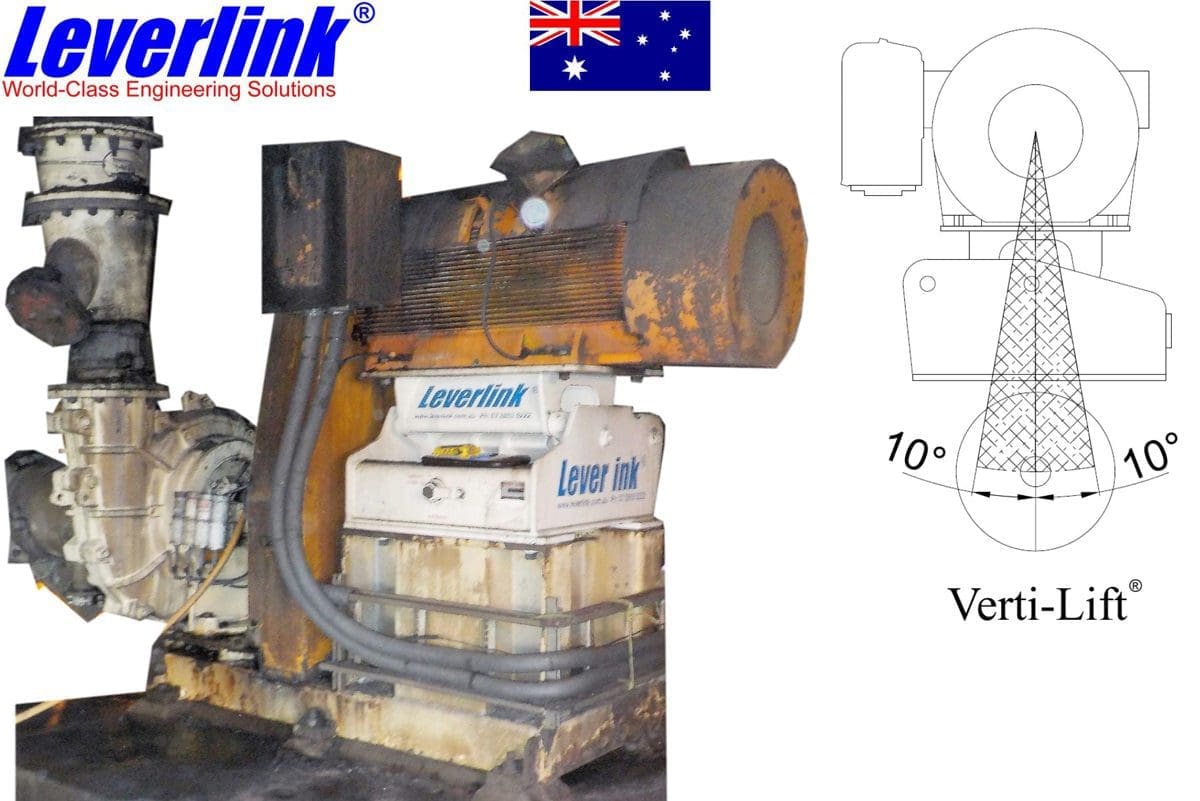

VL-305

To suit the following electric motor:

4 pole:               110kW to 132kW

6 pole:               75kW to 90kW

Motor Frame:   D315S

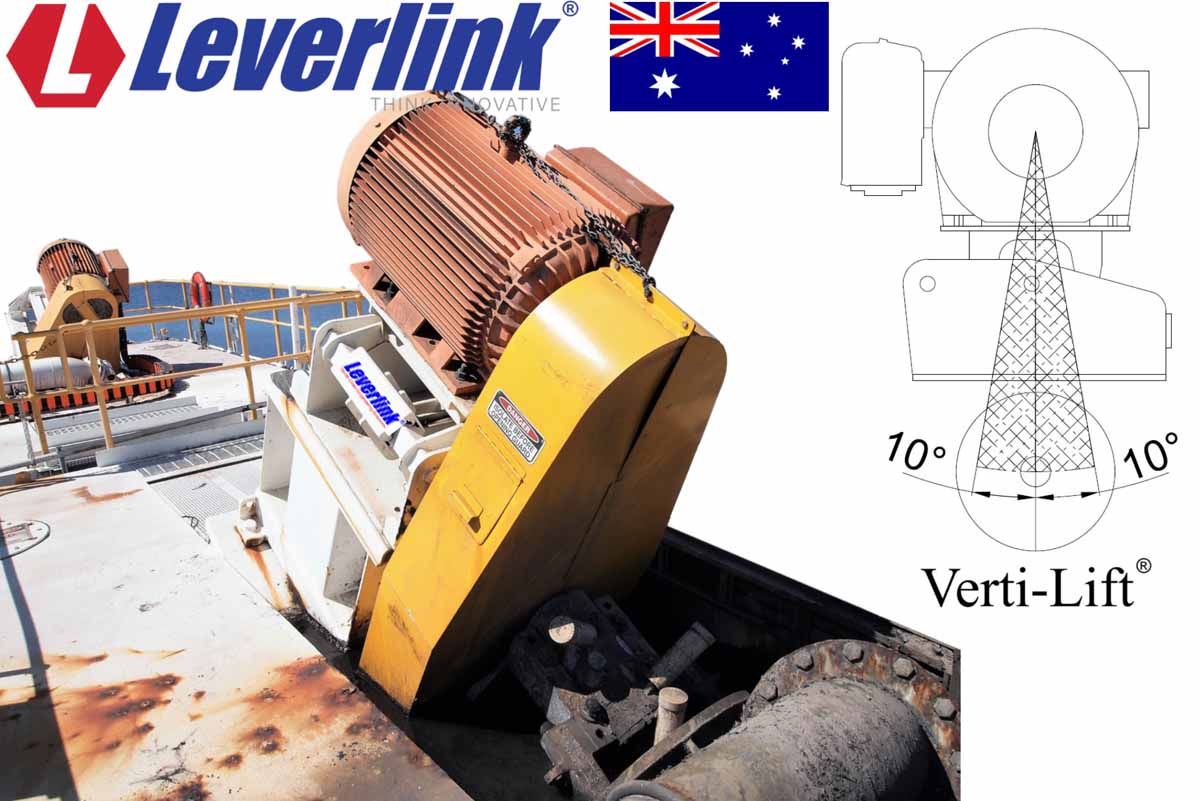

VL-306

To suit the following electric motor:

4 pole:               132kW to 160kW

6 pole:               90kW to 110kW

Motor Frame:   D315M

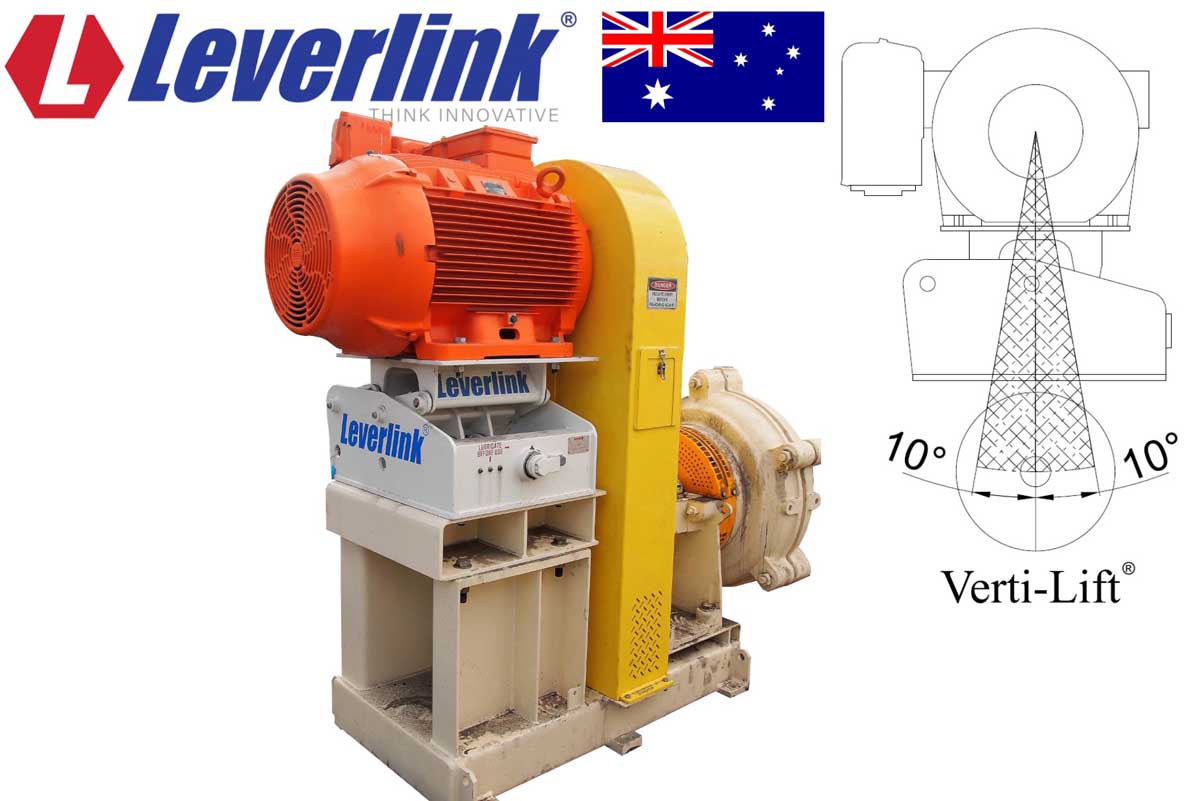

VL-307

To suit the following electric motor:

4 pole:               185kW to 200kW

6 pole:               132kW to 160kW

Motor Frame:   D315M, D315L

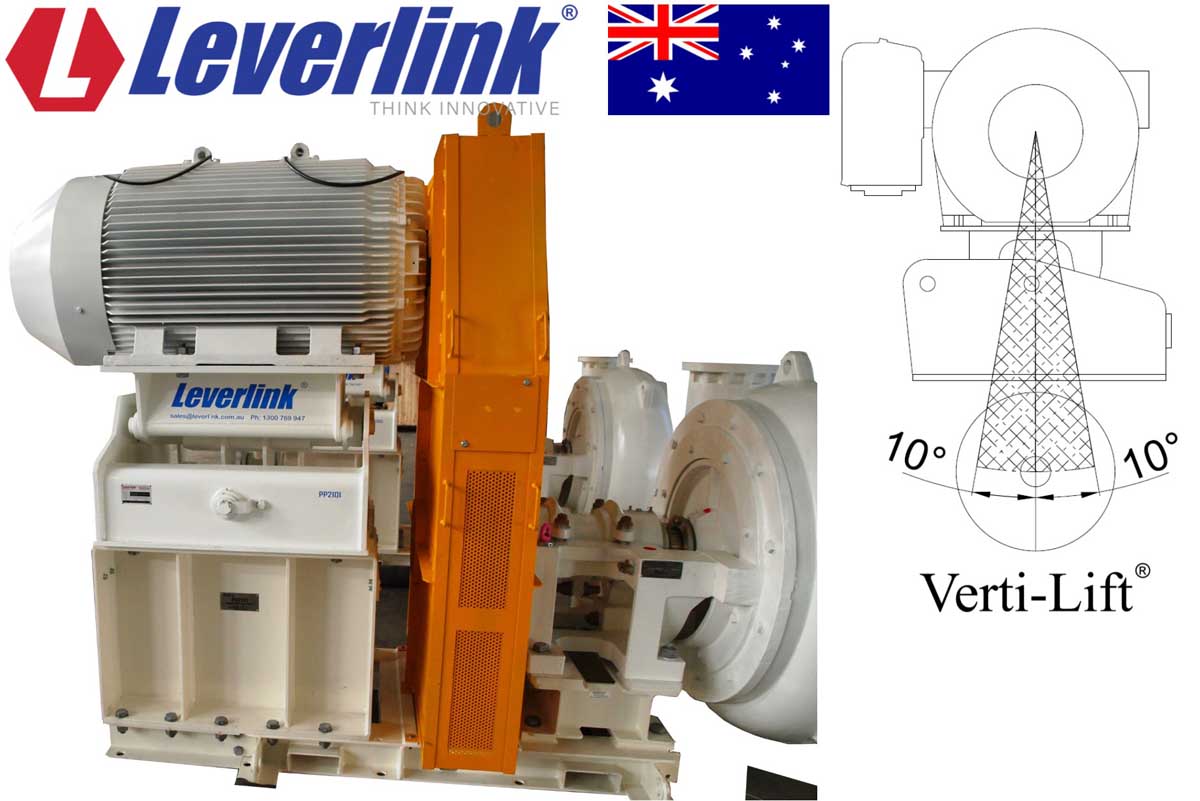

VL-308

To suit the following electric motor:

4 pole:               185kW to 280kW

6 pole:               132kW to 200kW

Motor Frame:   D315M, D315L

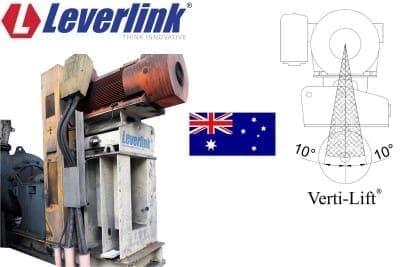

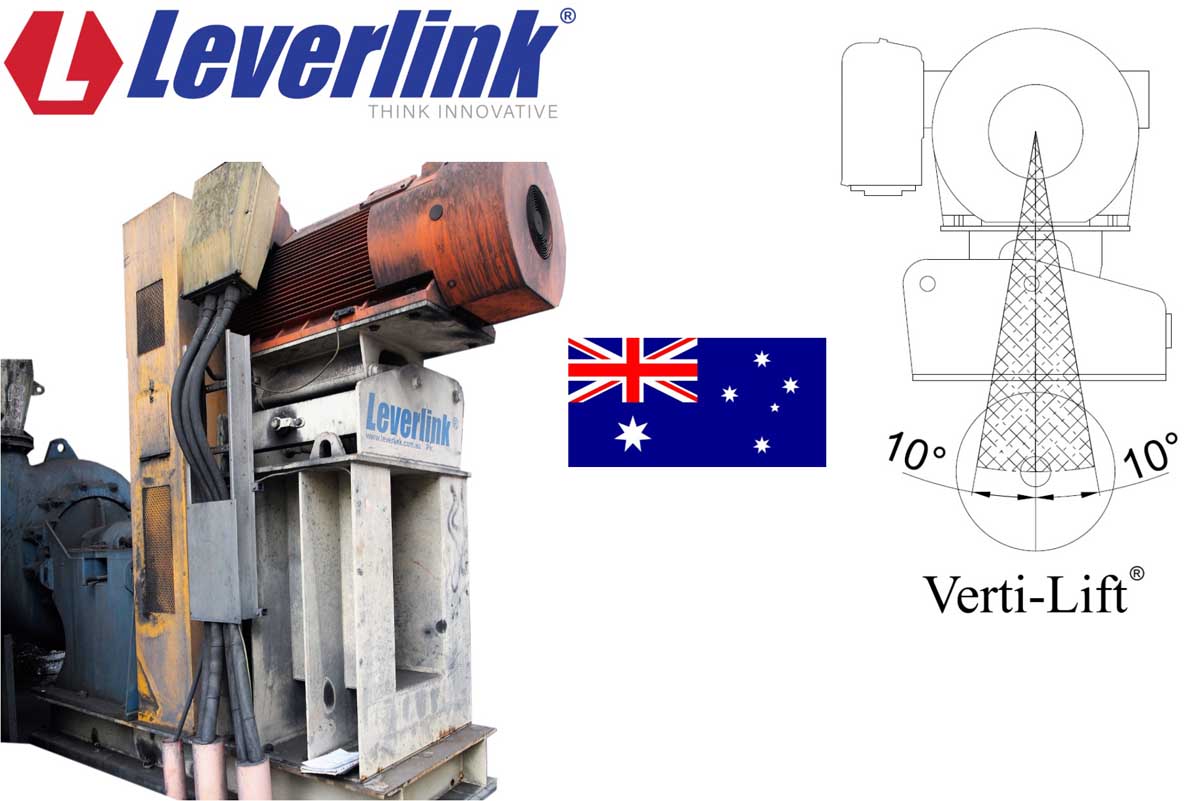

VL-309

To suit the following electric motor:

4 pole:               250kW to 280kW

6 pole:               220kW

Motor Frame:   D315LL

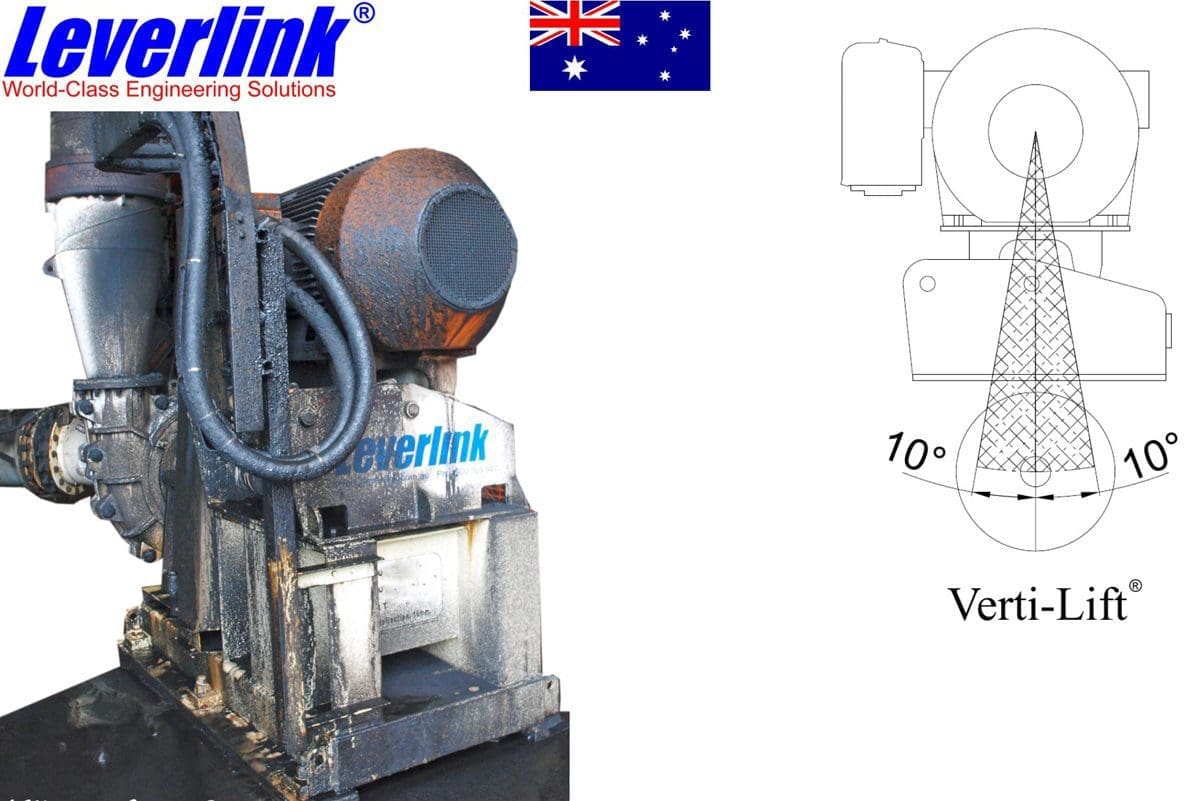

VL-310

To suit the following electric motor:

4 pole:               200kW to 250kW

6 pole:               150kW to 200kW

Motor Frame:   D355S

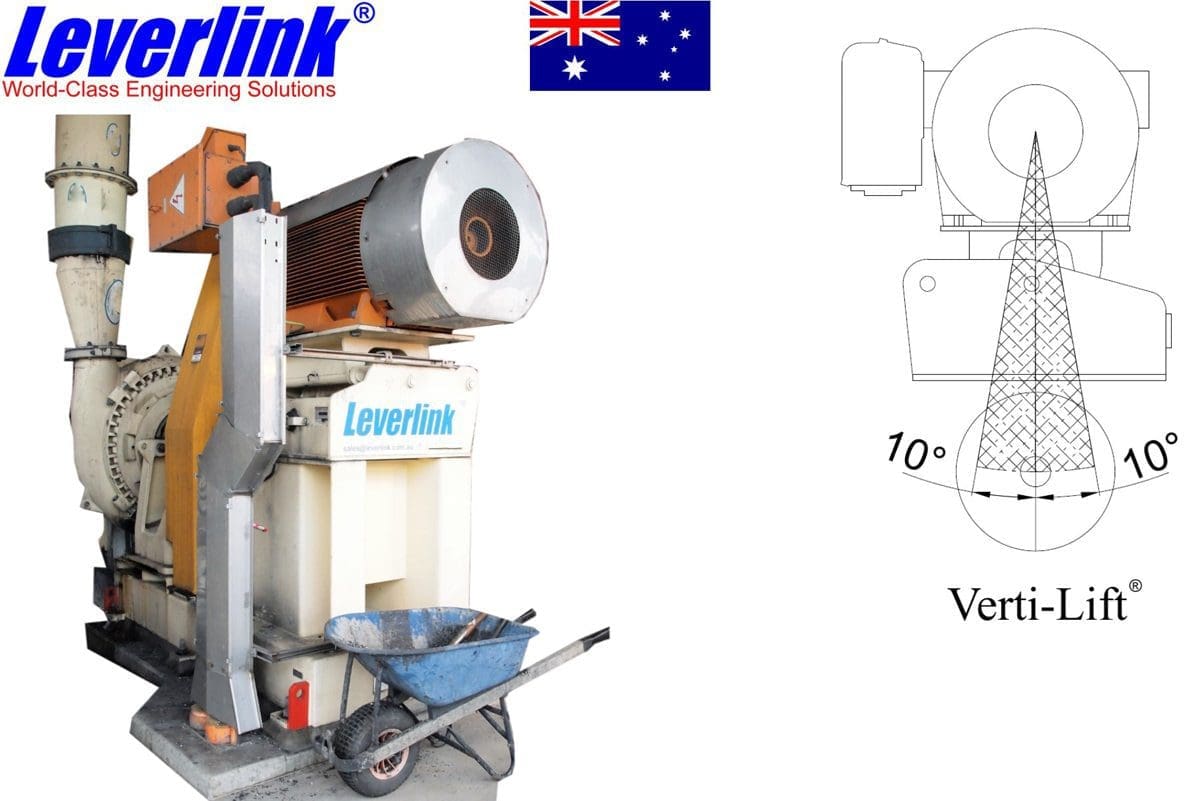

VL-311

To suit the following electric motor:

4 pole:               250kW to 400kW

6 pole:               160kW to 315kW

Motor Frame:   D355M, D355S

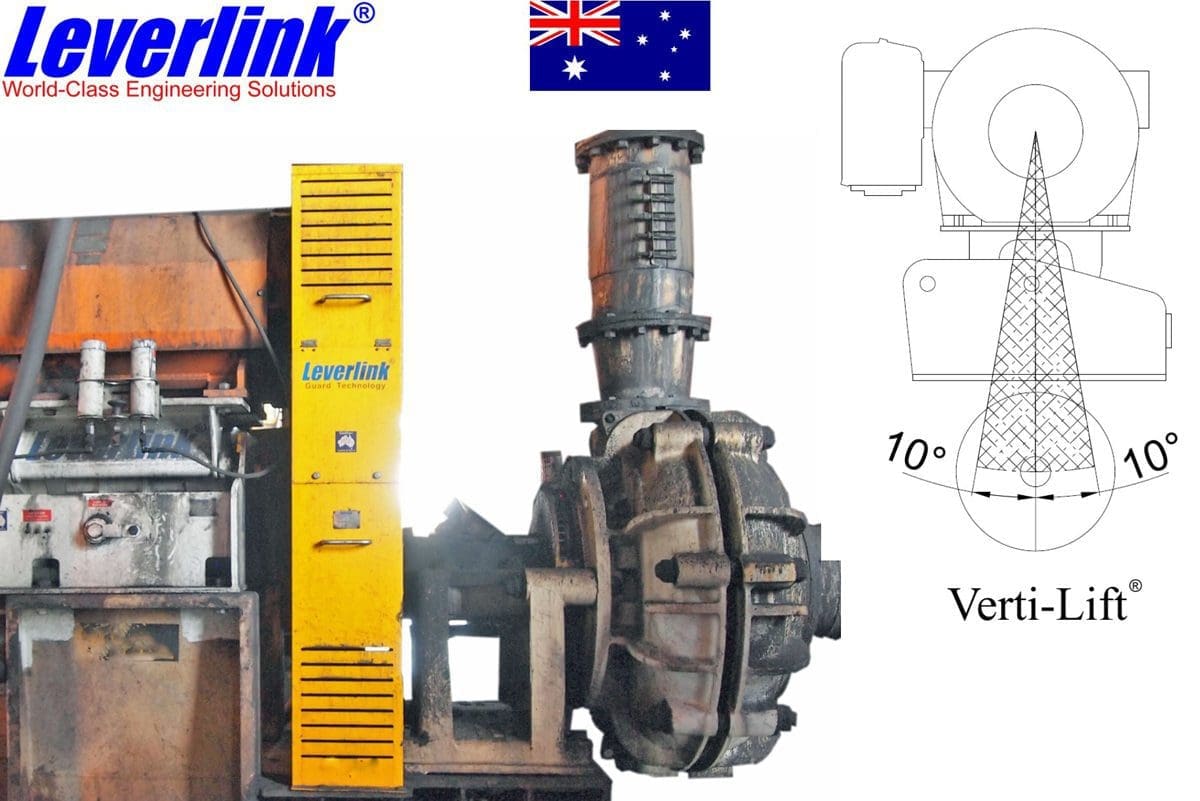

VL-312

To suit the following electric motor:

4 pole:               300kW to 315kW

6 pole:               250kW to 280kW

Motor Frame:   D355L(X)

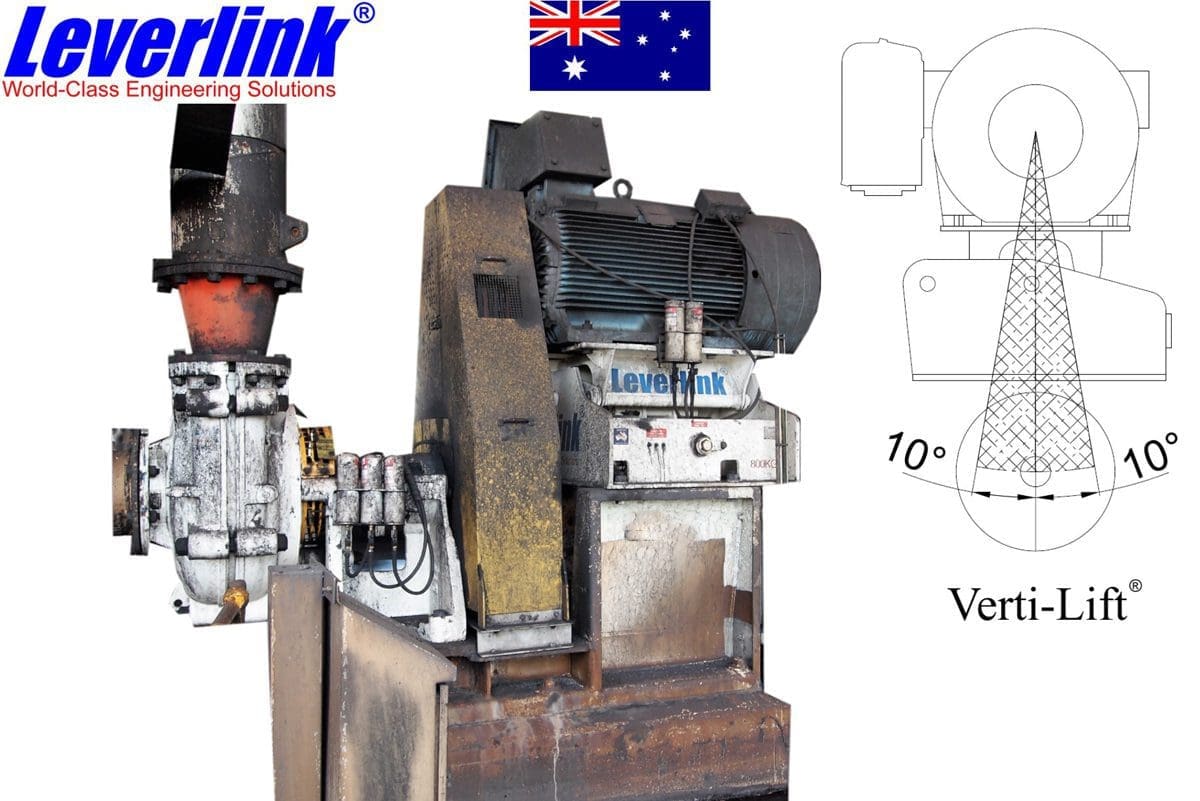

VL-313

To suit the following electric motor:

4 pole:               315kW to 400kW

6 pole:               280kW to 355kW

Motor Frame:   D355LL

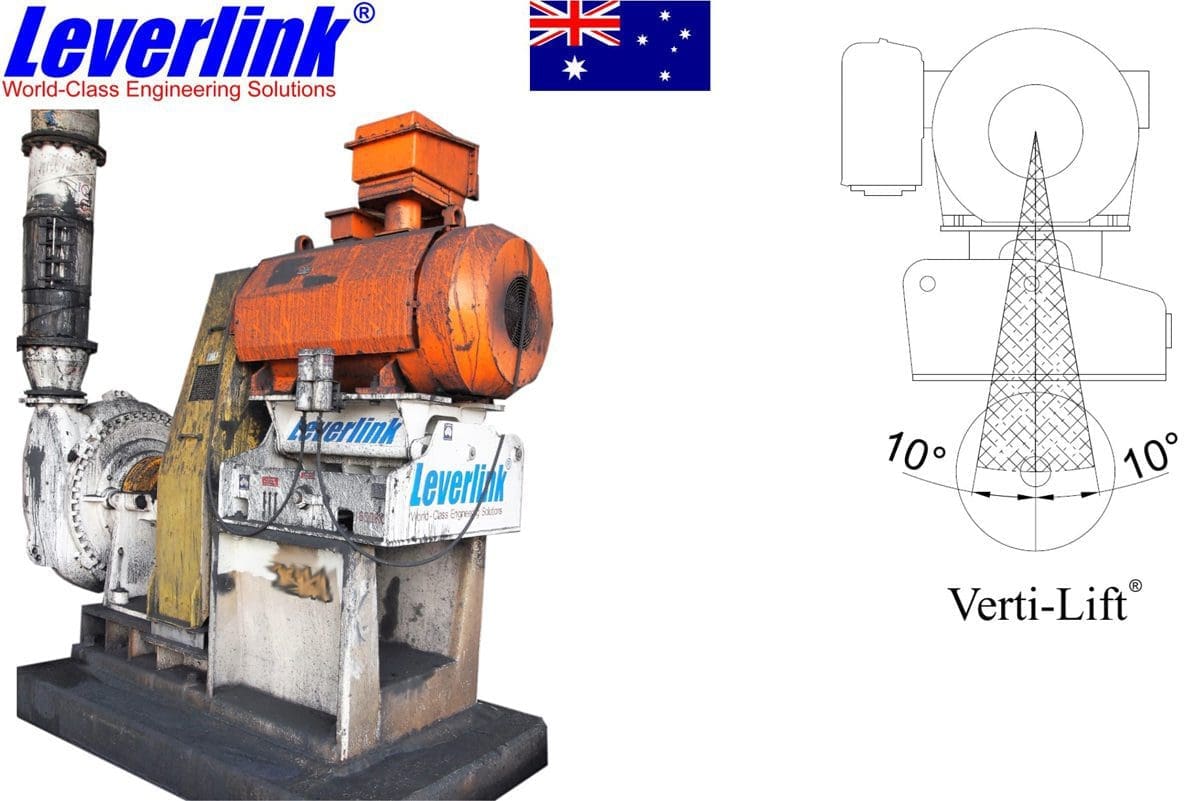

VL-314

To suit the following electric motor:

4 pole:               500kW

6 pole:               315kW to 450kW

Motor Frame:   D400L (LB) (LS)

VL-315

To suit the following electric motor:

4 pole:               500kW

6 pole:               400kW to 450kW

Motor Frame:   D400LL

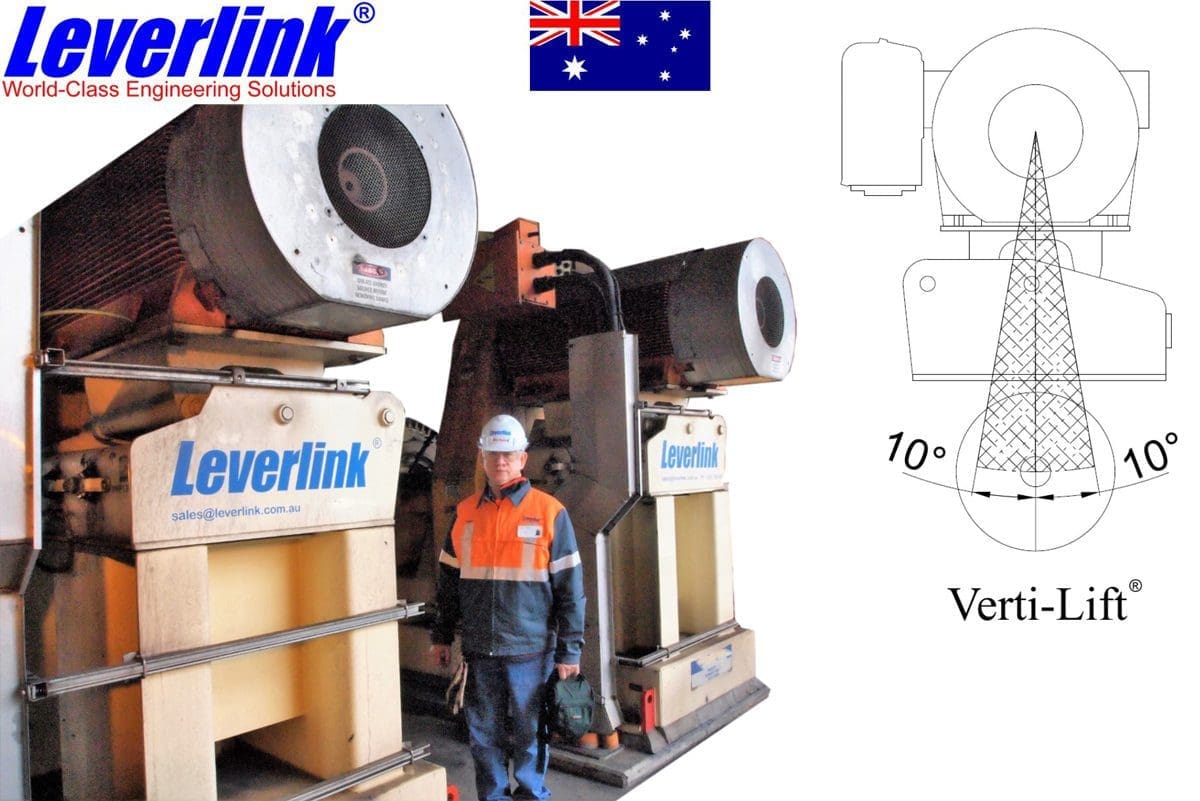

VL-316

To suit the following electric motor:

4 pole:

6 pole:               500kW – 630kW

Motor Frame:   D450L, D450LL

VL-317

To suit the following electric motor:

4 pole:

6 pole:               600kW

Motor Frame:   D500LL
