Dynamic Impact Bed for Conveyor Load Zones

Looking for a solution for belt damage at a conveyor load zone or transfer point? You’ve come to the right place! With a Leverlink Dynamic Conveyor Impact Bed you will not be buying an off-the-shelf product. You’ll be getting a product specifically customised to your application. In order to get the best outcome, we will require all functional specifications to your current load zone or transfer point. We will then engineer a solution that will minimise belt damage and extend the service life of the conveyor impact bed. In most cases, we give a 10-year structural and mechanical warranty. This warranty will not apply to consumables, so be sure to specify when speaking to one of our friendly team members. Our conveyor impact beds stand the test of time, once it’s seset upou’ll wonder why you didn’t get a Leverlink conveyor impact bed sooner! Heavy-Duty Conveyor Impact Beds

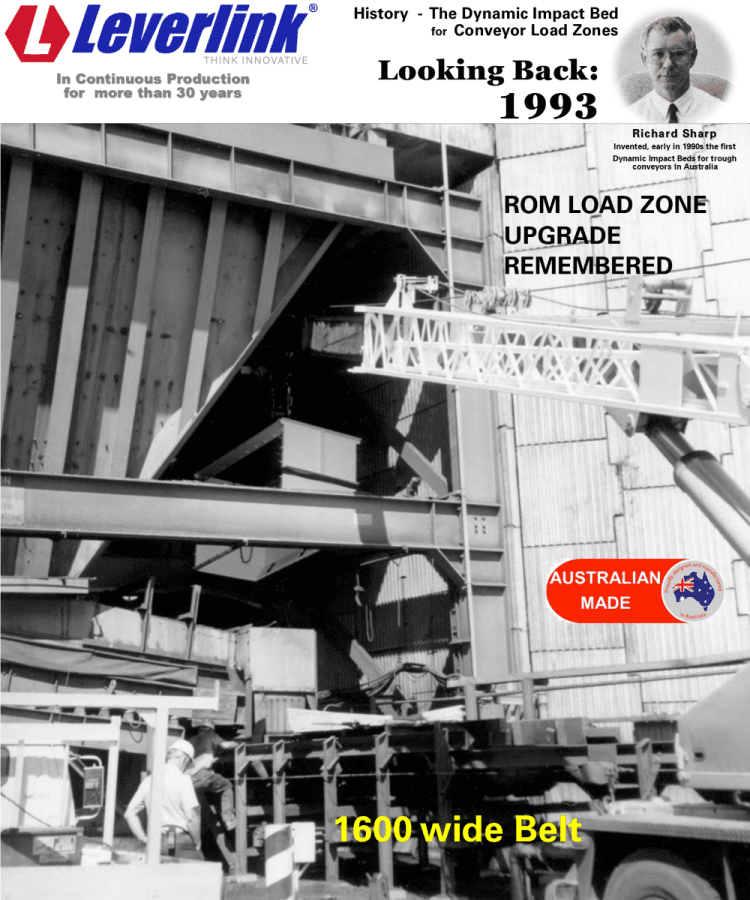

ROM LOAD ZONE UPGRADE REMEMBERED

Towards the end of 1993, A major mining operation requested Leverlink investigate the ROM conveyor load zone as high belt wear, impact roller failure and spillage was a major concern.

Intelligence gained from a site visit determined two large feeders discharging at 90° onto a common 1600 wide conveyor belt supported by suspended or garland type toughing rollers. The feed was not centred on the belt and made for tracking and spillage problems.

Leverlink proposed 3 major design changes:

Remove the suspended (garland) toughing sets and replace them with Leverlink Dynamic Impact Beds at the discharge zones of the feeders and foot mounted troughing sets in rest of the load zone.
Install a Dynamic Impact Plate (adjustable toe) opposite each feeder to centre the feed on the conveyor belt.
Rebuild the dust enclosures to control spillage and air borne particles.

Dissipation of Kinetic Engery

It was conceived from an idea to develop a better and more reliable product; one that would dissipate kinetic energy and provide the benefits of long service life, as well as assisting in reducing maintenance costs in terms of consumables and labour.

In Continuous Production for more than 30 years – using rubber torsion springs as suspension was radically different from the static impact beds that were previously dominating the Australian marketplace.

Multiple Trough Impact Systems

More than 30 years of engineering and applying the Leverlink Impact Technology in the harshest of mining applications has proven the Leverlink multi-trough system will reduce maintenance costs, provide a long service life and will not fail.

In Continuous Production for More Than 30 Years

Custom designed and engineered in-house

The Customer Agreed With Our Design

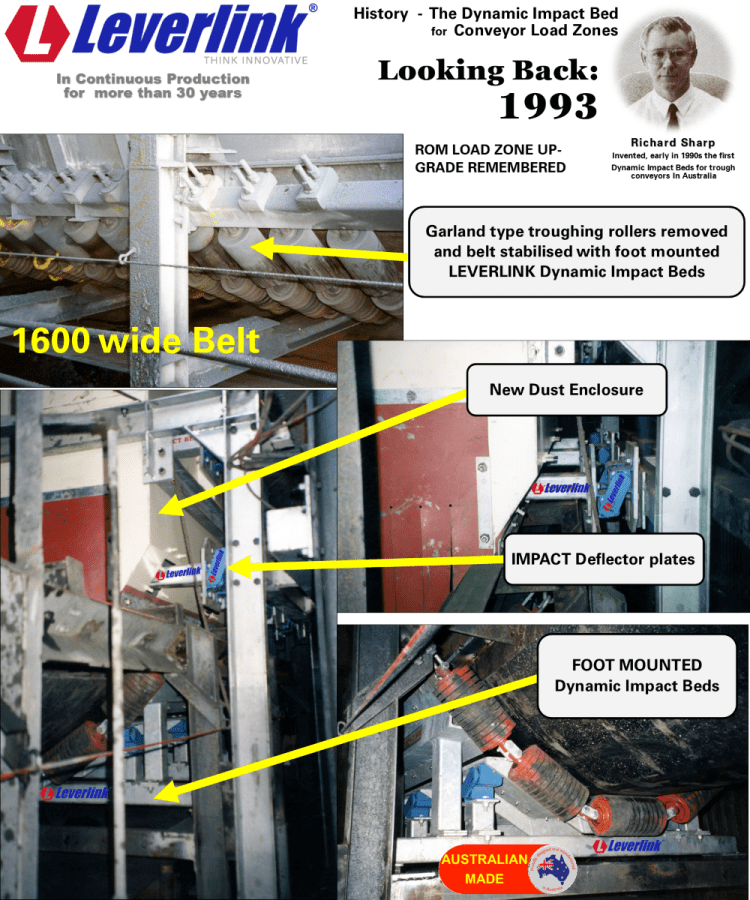

RESULTS

The belt now tracked correctly due to:

Dynamic Impact beds and foot mounted troughing roller sets stabilized the belt.
The Dynamic Impact Plate (adjustable) placed the material in the centre of the belt and eliminated the tracking problem. Impact energy was dissipated via the rubber impact mounts.

Roller damaged was eliminated:

The Dynamic Impact Beds absorbed and dissipated the impact energy. It also protected the supporting structure.

Belt Damaged Reduced:

Damage to the belt was reduced noticeably.

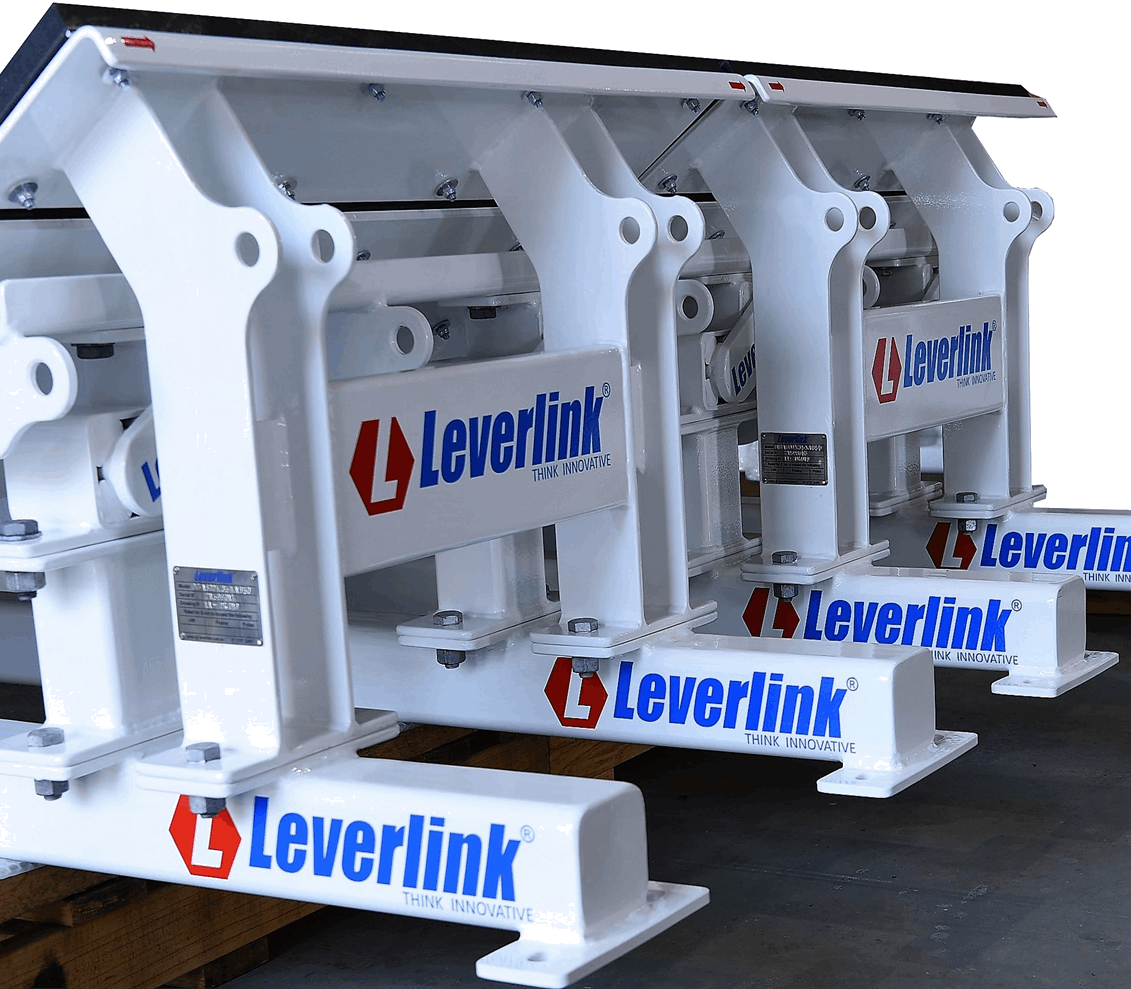

Leaders in Dynamic Impact Beds

Leverlinks Dynamic Impact Beds are custom-built to your site requirements. We engineer our Dynamic Impact beds with an emphasis on structural integrity, belt preservation, and leakage prevention.

Designed to your application – We design with cost-effective methods in order to increase belt life and reduce maintenance time.

Dynamic Suspension System – Dissipates kinetic energy to protect belts and structure of the conveyor systems.

Fixed Wings to prevent leakage – This method reduces wastage and minimises clean up while also assisting in eliminating WHS issues.

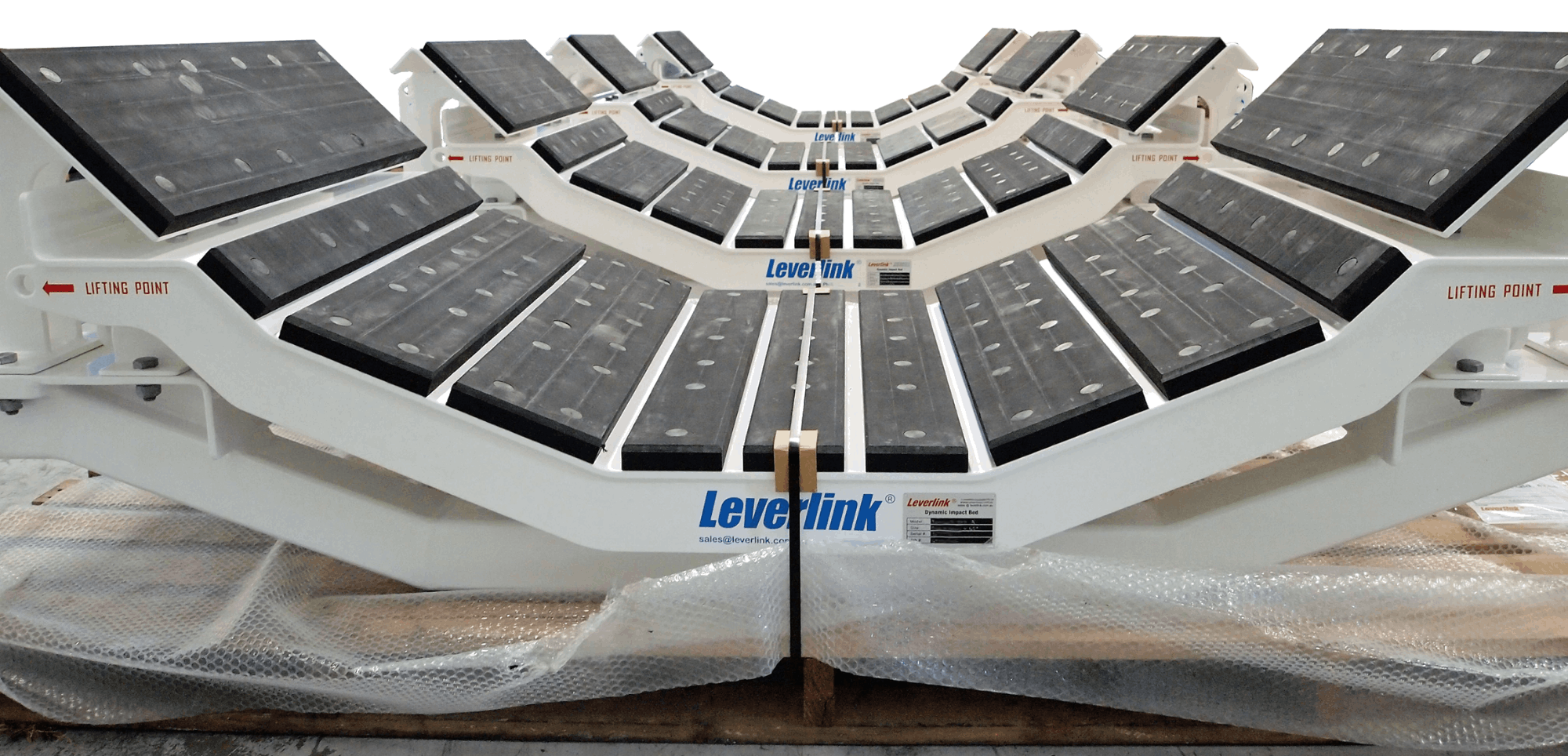

Polymer Slider Bar Media – Available in FRAS. No rollers to fail due to impact.

Protective Coating – Our protective coating has proven to last over time, even in the harshest environments.

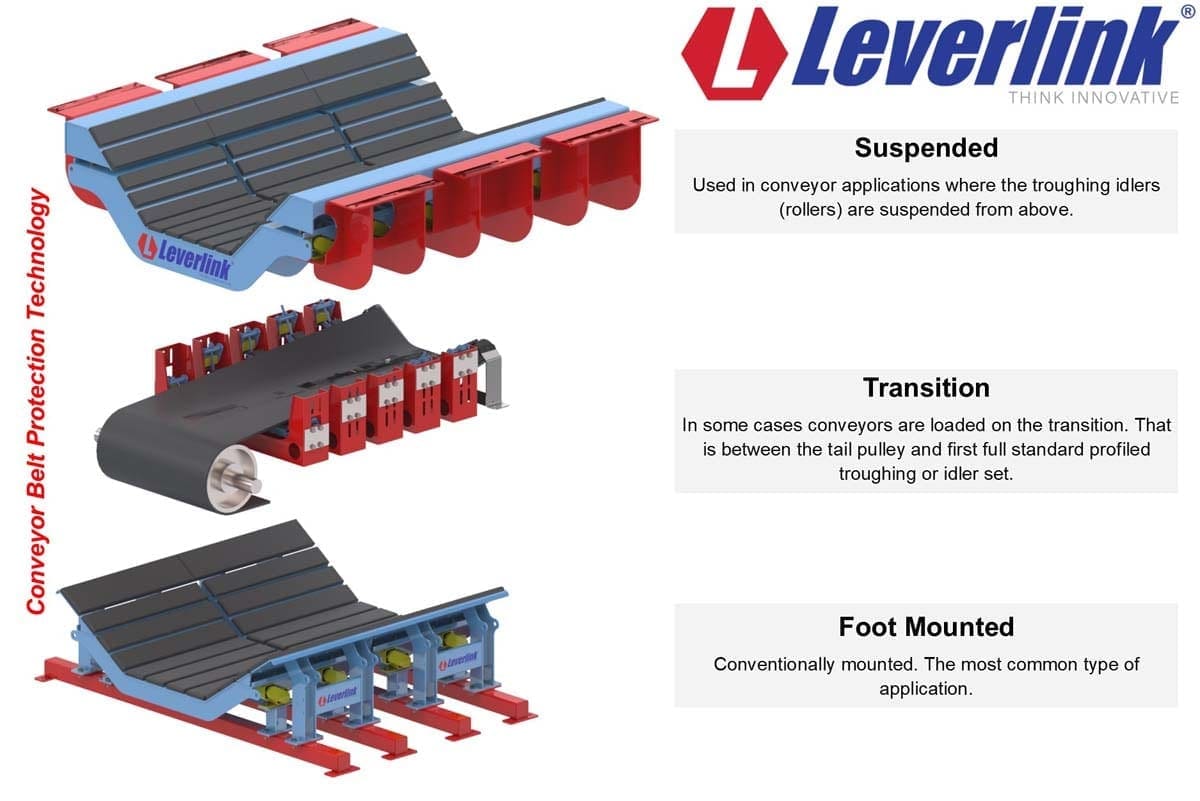

Conveyor belt protection technology

Suspended – used in conveyor applications where troughing idlers (rollers) are suspended from above.
Transition – In some cases conveyors are loaded on the transition. The is between the tail pulley and first full standard profiled troughing or idler set
Foot mounted – Conventionally mounted—the most common type of application.

Specifications and guidelines

We design the Dynamic Impact Beds to minimise the current problem and maximise service life. Should your application exceed the specifications provided in this brochure please contact us. All beds are custom designed and engineered to suit your application.

Impact Speed	Impact bar material	Tonnage per hour
Up to 6 m/sec	Polymer Slide Media, FRAS available	Up to 15,000 tph

Available size	Maxium temperature	Impact Energy
Up to 3000mm belt width	Polymer -150°C to 80°C	Lump weight: 500kg
Length to suit	FRAS -250°C to 80°C	Drop height: Up to 10 metres

Leverlink Skirting Systems

It is best to combine Leverlink’s Dynamic Impact Bed with Leverlink’s Skirting Systems to minimise leakage and reduce maintenance. Please contact us in regards to our Skirting Systems in order to provide you with the most accurate information.

Benefits of Leverlink’s innovative impact mount

No rollers to replace
Minimises belt and structural damage
Cost-effective
Ten-year structural and mechanical warranty

Downloads

DIB-600, DIB-650, DIB-750, DIB-800, DIB-900, DIB-1000, DIB-1050, DIB-1200, DIB-1350, DIB-1400, DIB-1500, DIB-1600, DIB-1800, DIB-2000, DIB-2200, DIB-2400, DIB-2500, DIB-3000
