LEVERLINK Vertical Down Motorbases - Category B

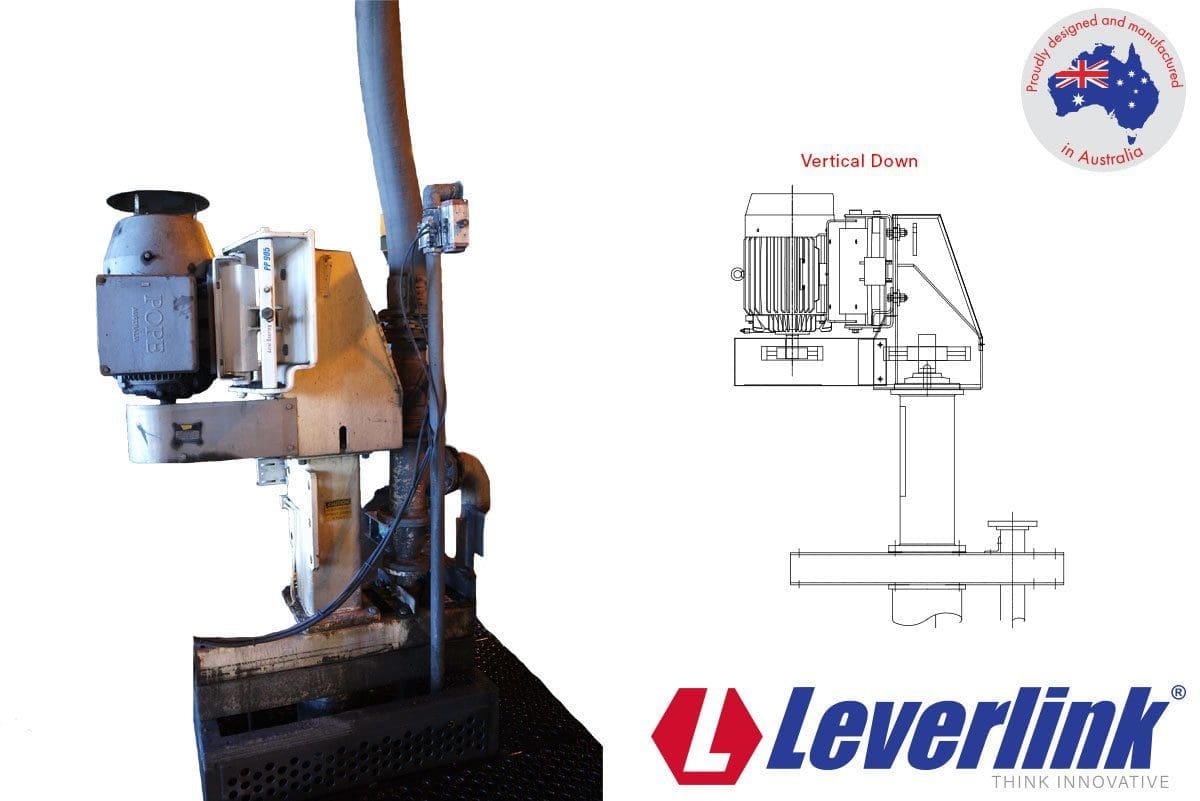

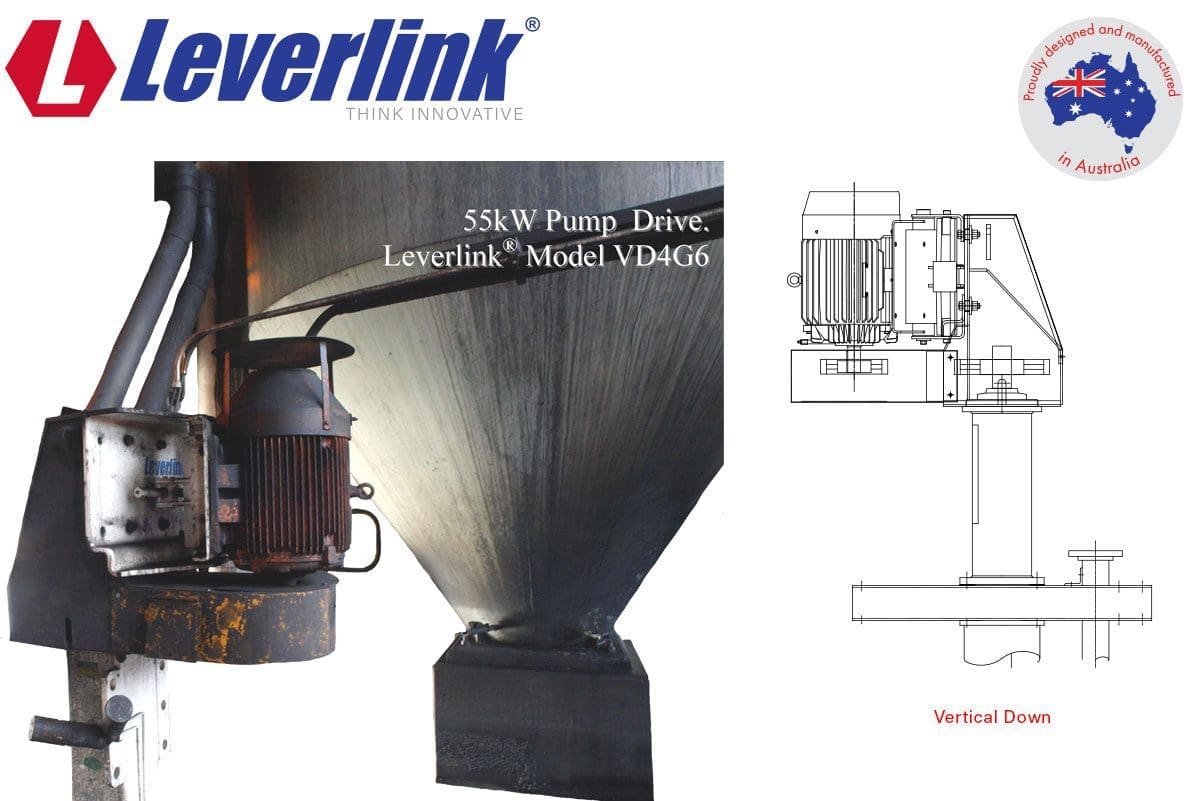

« BackLeverlink vertical motor bases have been designed for cooling fans, sump pumps, float cells, flotation cells, and other vee belt drives operating in a vertical orientation.
- Category B - recommended for STATIC applications
Series orientation:
Poles:
kW:
Frame size:
LEVERLINK model VD4G-1
To suit the following electric motor:
4 pole: 5.5kW to 7.5kW
6 pole: 3kW to 5kW
Motor Frame: D132S, D132M
LEVERLINK model VD4G-2
To suit the following electric motor:
4 pole: 11kW to 15kW
6 pole: 7.5kW to 11kW
Motor Frame: D160M, D160L
LEVERLINK model VD4G-3
To suit the following electric motor:
4 pole: 18.5kW to 22kW
6 pole: 15kW
Motor Frame: D180M, D180L
LEVERLINK model VD4G-4
To suit the following electric motor:
4 pole: 30kW
6 pole: 18.5kW
Motor Frame: D200L
LEVERLINK model VD4G-5
To suit the following electric motor:
4 pole: 37kW to 45kW
6 pole: 30kW
Motor Frame: D225S, D225M
GET AQUOTE
