LEVERLINK ST Series - Category A

« Back

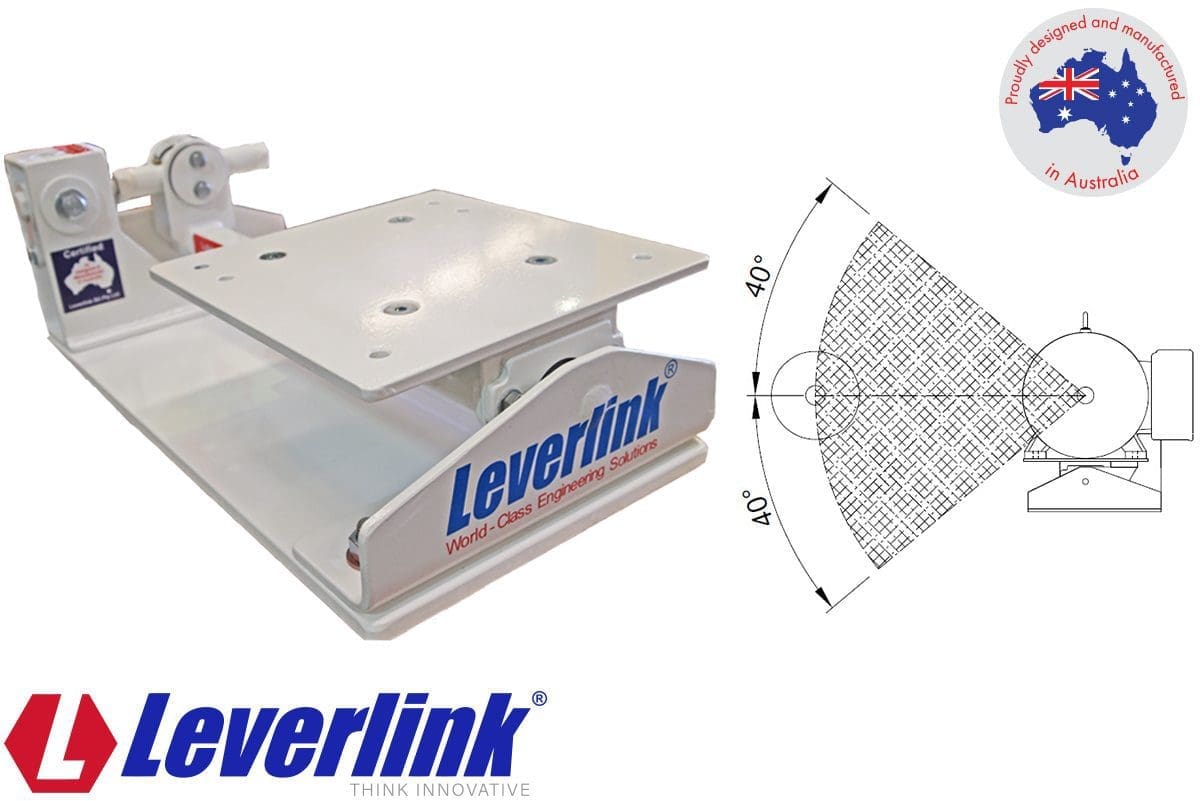

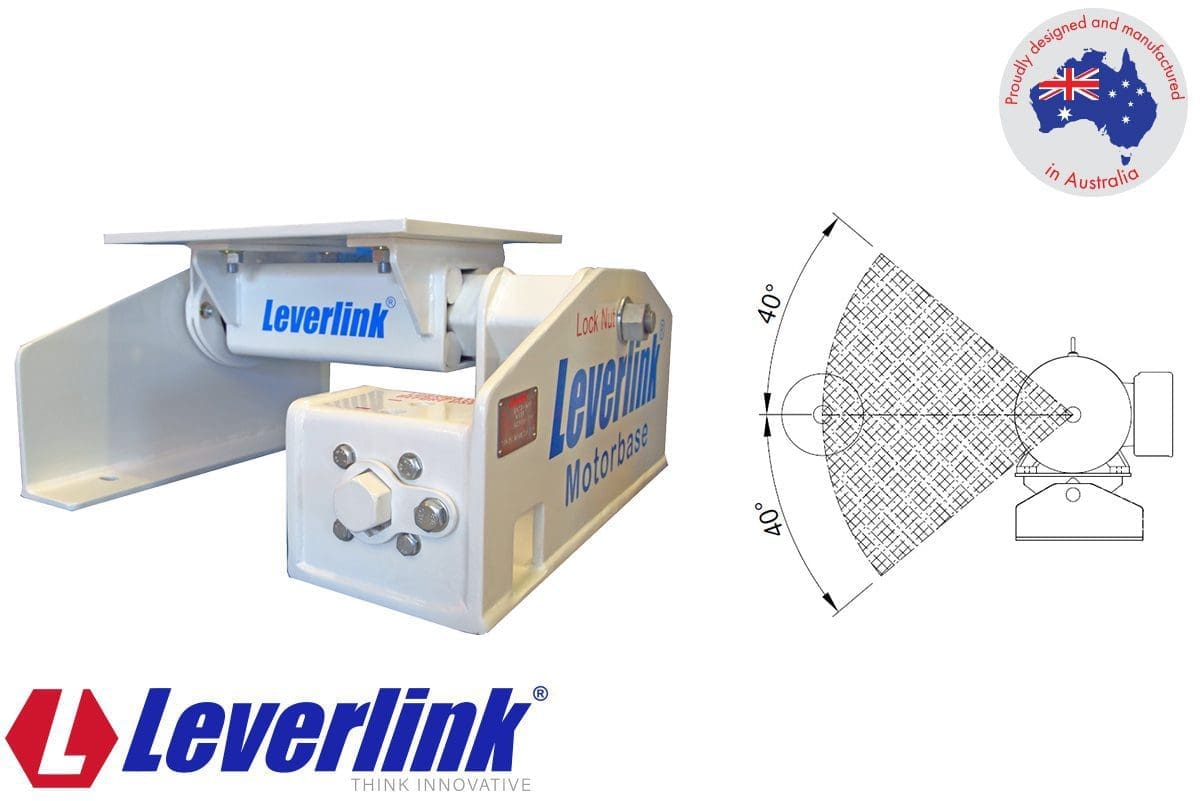

This is a Leverlink standard height self tensioning motor base.  It is ideal for dynamic machinery drives such as vibrating screens, feeder and centrifuges. This motor base would suit applications such as gyratory crushers that transmit energy through the v-belt drive systems. Models up to 200kW. The tensioning system is fully enclosed and lubricated, and will operate in the most harsh environments.
  • Category A – recommended for DYNAMIC applications

Series orientation:

Poles:

kW:

Frame size:

ST-1

To suit the following electric motor:

4 pole:               5.5W to 7.5kW

6 pole:               3kW to 5.5kW

Motor Frame:   D132S, D132M

ST-2

To suit the following electric motor:

4 pole:               11kW to 15kW

6 pole:               7.5kW to 11kW

Motor Frame:   D160M, D160L

ST-3

To suit the following electric motor:

4 pole:               18.5kW to 22kW

6 pole:               15kW

Motor Frame:   D180M, D180L

ST-4

To suit the following electric motor:

4 pole:               30kW

6 pole:               18.5kW

Motor Frame:   D200L

ST-5

To suit the following electric motor:

4 pole:               37kW to 45kW

6 pole:               30kW

Motor Frame:   D225S, D225M

ST-6/7

To suit the following electric motor:

4 pole:               55kW to 75kW

6 pole:               37kW to 45kW

Motor Frame:   D250S/M

ST-8/9

To suit the following electric motor:

4 pole:               75kW to 110kW

6 pole:               45kW to 75kW

Motor Frame:   D280S/M

ST-10

To suit the following electric motor:

4 pole:              110kW to 132kW

6 pole:               75kW to 90kW

Motor Frame:   D315S

ST-11

To suit the following electric motor:

4 pole:            132kW to 160kW

6 pole:            90kW to 110kW

Motor Frame:   D315M

ST-12

To suit the following electric motor:

4 pole:               185kW to 200kW

6 pole:               132kW to 160kW

Motor Frame:   D315M, D315L
