LEVERLINK HA-X Series - Category B

« Back

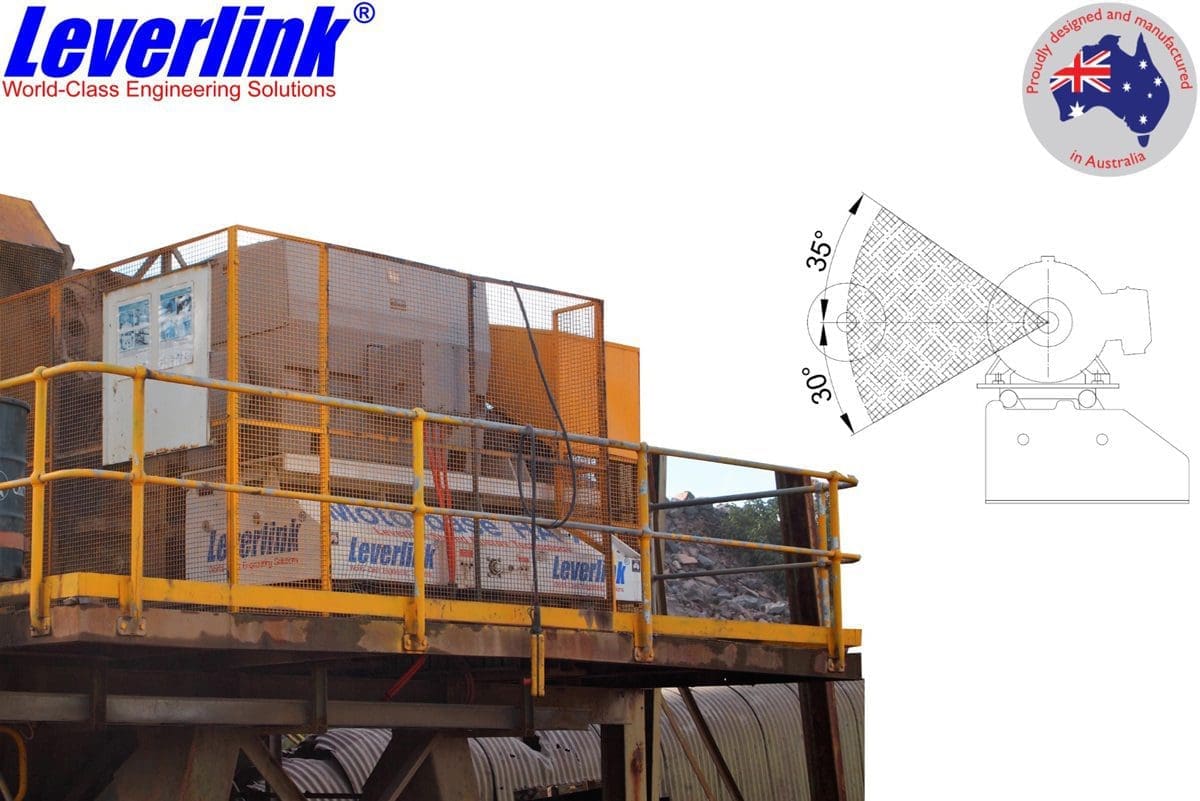

This is an extended version of the HA-Series Leverlink motor base.  It is designed to accommodate a clutch and/or coupling with bearings and drive pulley, all on the same platform. It is a crusher motor base. Models 200kW to 1000kW The tensioning system is fully enclosed and lubricated.  It will operate in the harshest of conditions without the fear of failure.
  • Category B - recommended for STATIC applications

Series orientation:



Frame size:

HA X 313

To suit the following electric motor:

4 pole:              315kW to 400kW

6 pole:              280kW to 355kW

Motor Frame:   D250S
