LEVERLINK HA Series - Category B

« Back

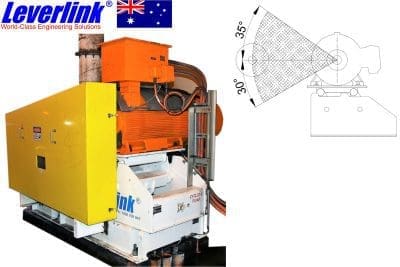

The Leverlink HA Series is a heavy duty motor base that operates with dual rubber torsion springs to provide stability and safety for large electric motors over 200kW. Commonly used on large slurry pumps. Models 200kW to 1000kW. Category B - recommended for STATIC applications

Series orientation:

Poles:

kW:

Frame size:

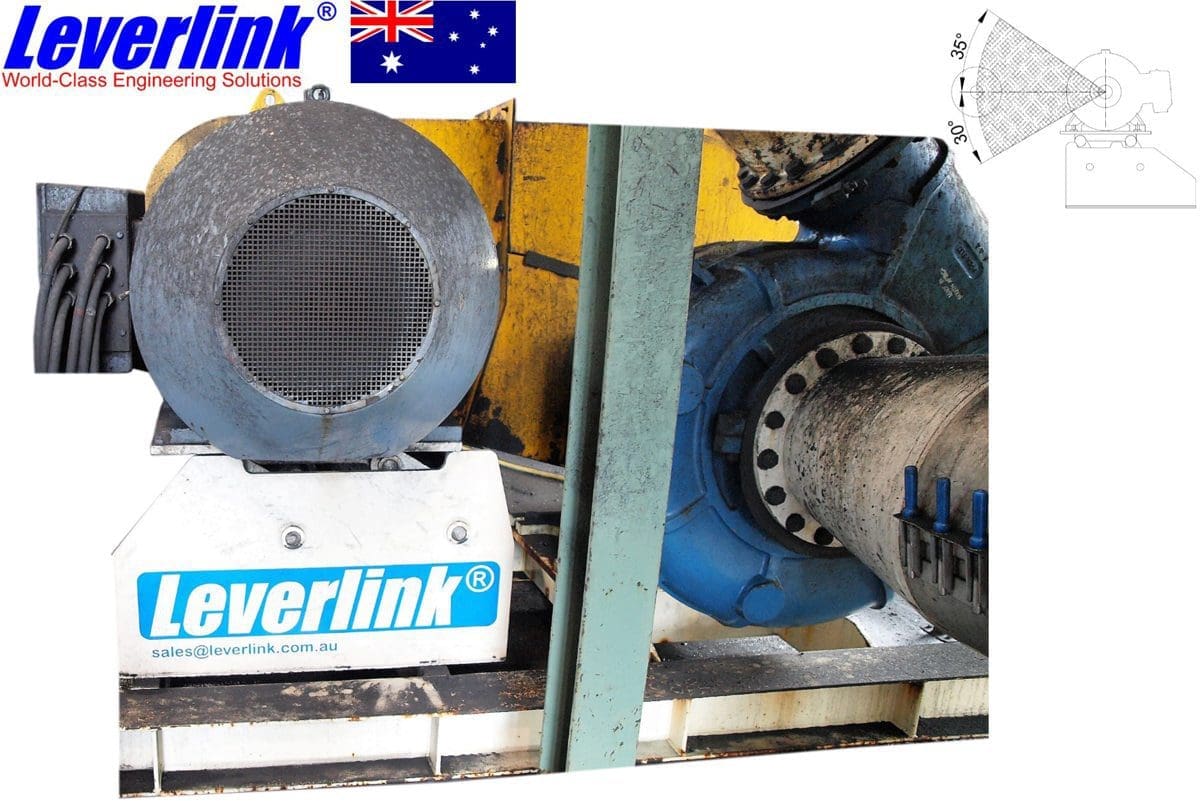

HA-308

To suit the following electric motor:

4 pole:               160kW to 200kW

6 pole:               220kW to 280kW

Motor Frame:   D315M, D315L

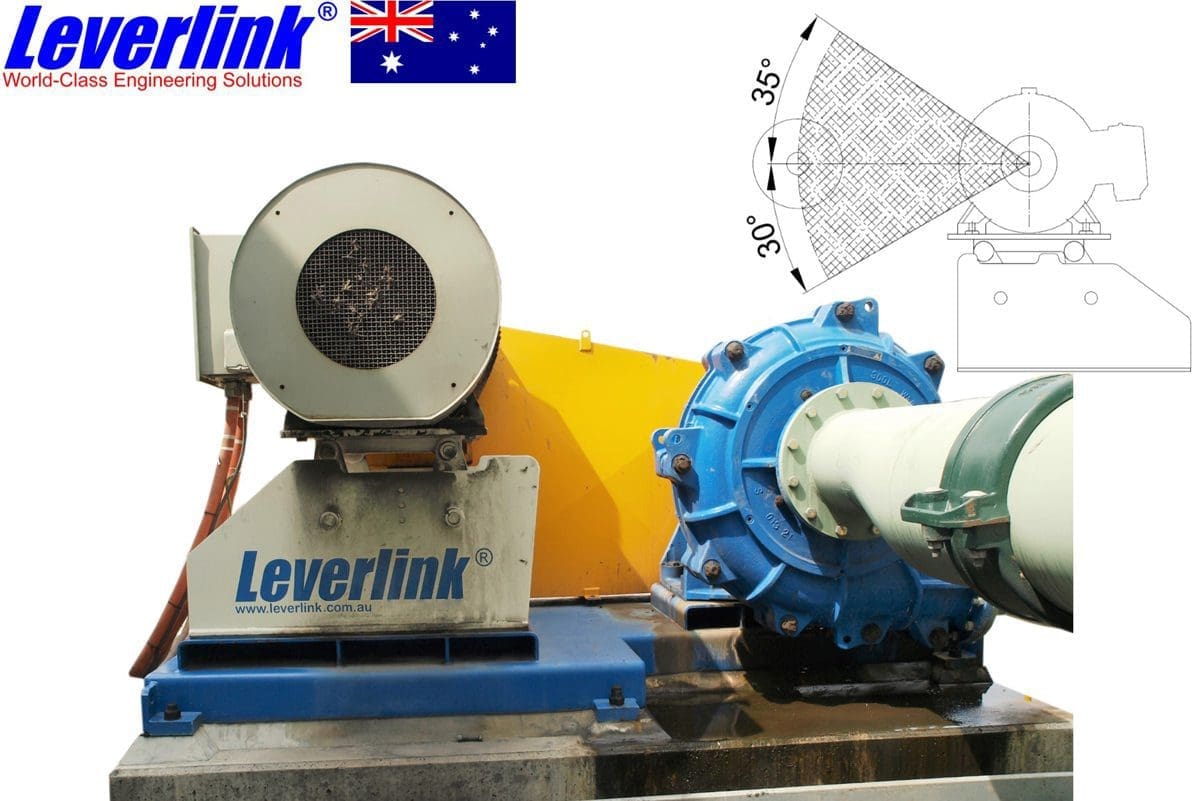

HA-309

To suit the following electric motor:

4 pole:               250kW to 280kW

6 pole:               220kW

Motor Frame:   D315LL

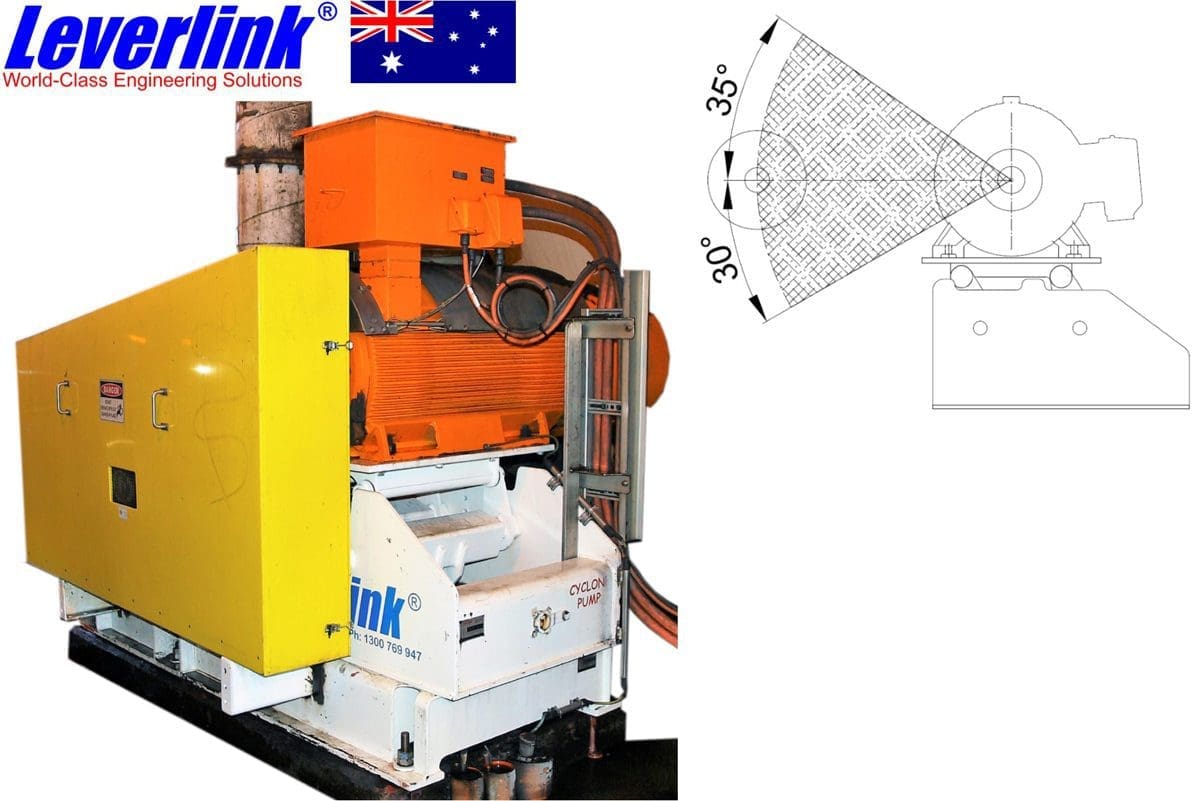

HA-310

To suit the following electric motor:

4 pole:               200kW to 250kW

6 pole:               150kW to 200kW

Motor Frame:   D355S

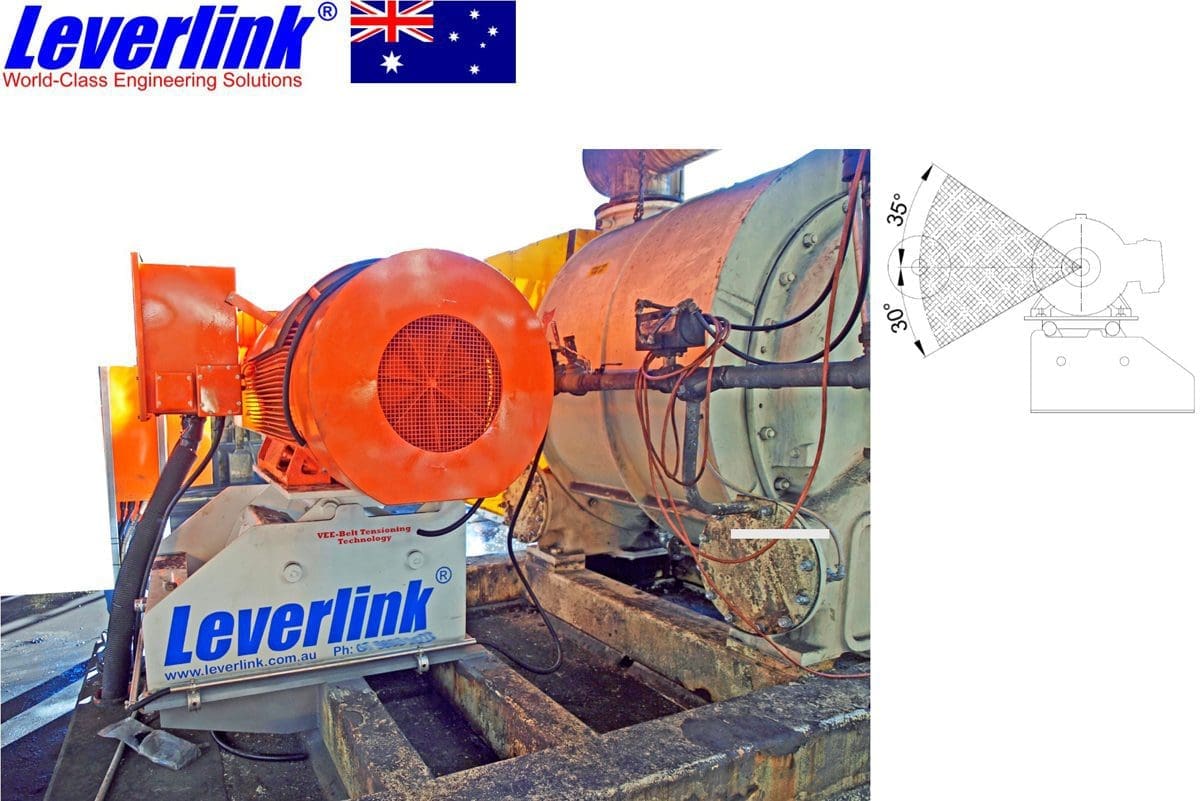

HA-311

To suit the following electric motor:

4 pole:               250kW to 400kW

6 pole:               160kW to 315kW

Motor Frame:   D355M, D355L

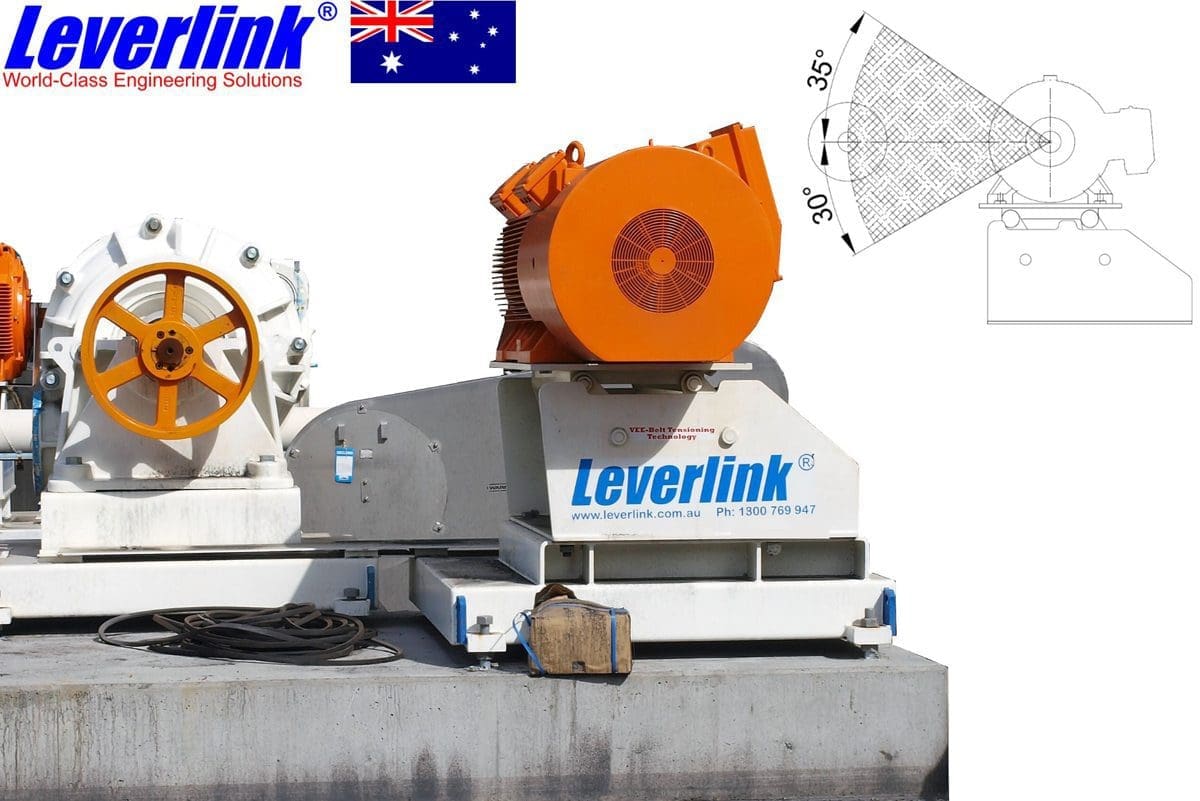

HA-312

To suit the following electric motor:

4 pole:               300kW to 315kW

6 pole:               250kW to 280kW

Motor Frame:   D355L

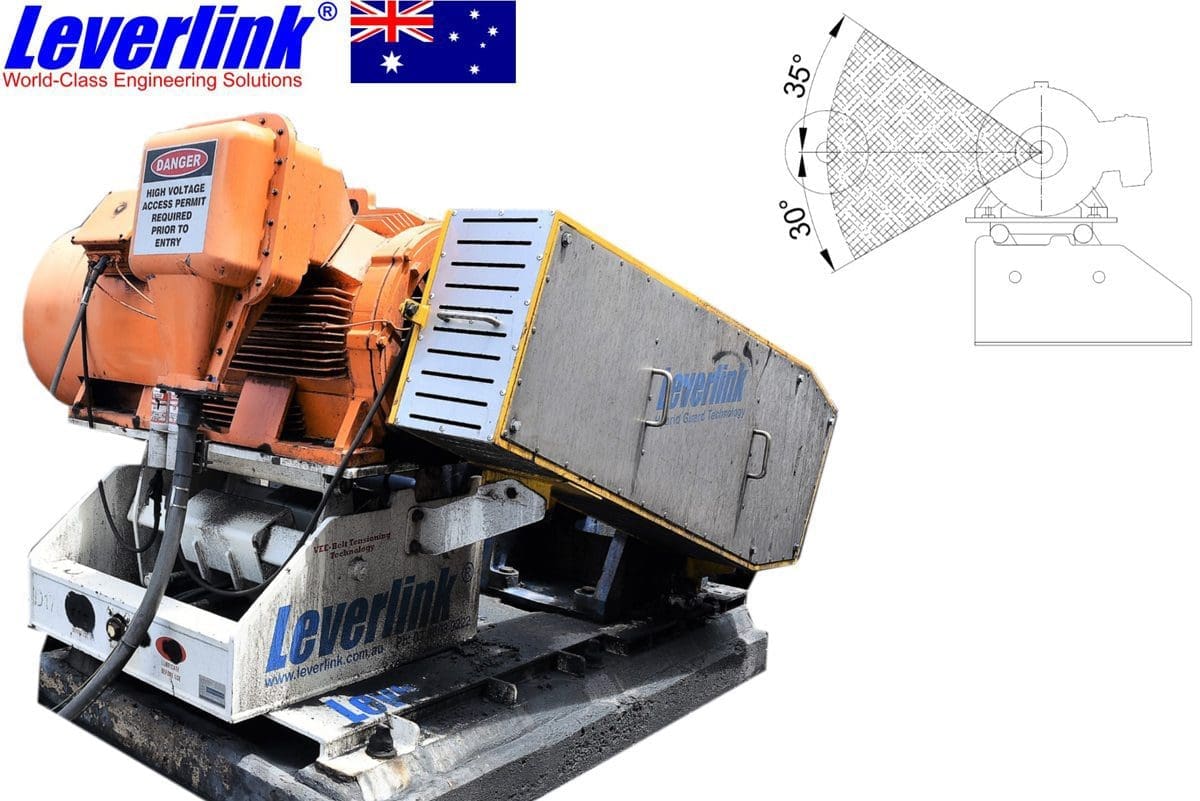

HA-313

To suit the following electric motor:

4 pole:               315kW to 400kW

6 pole:               280kW to 355kW

Motor Frame:   D355LL

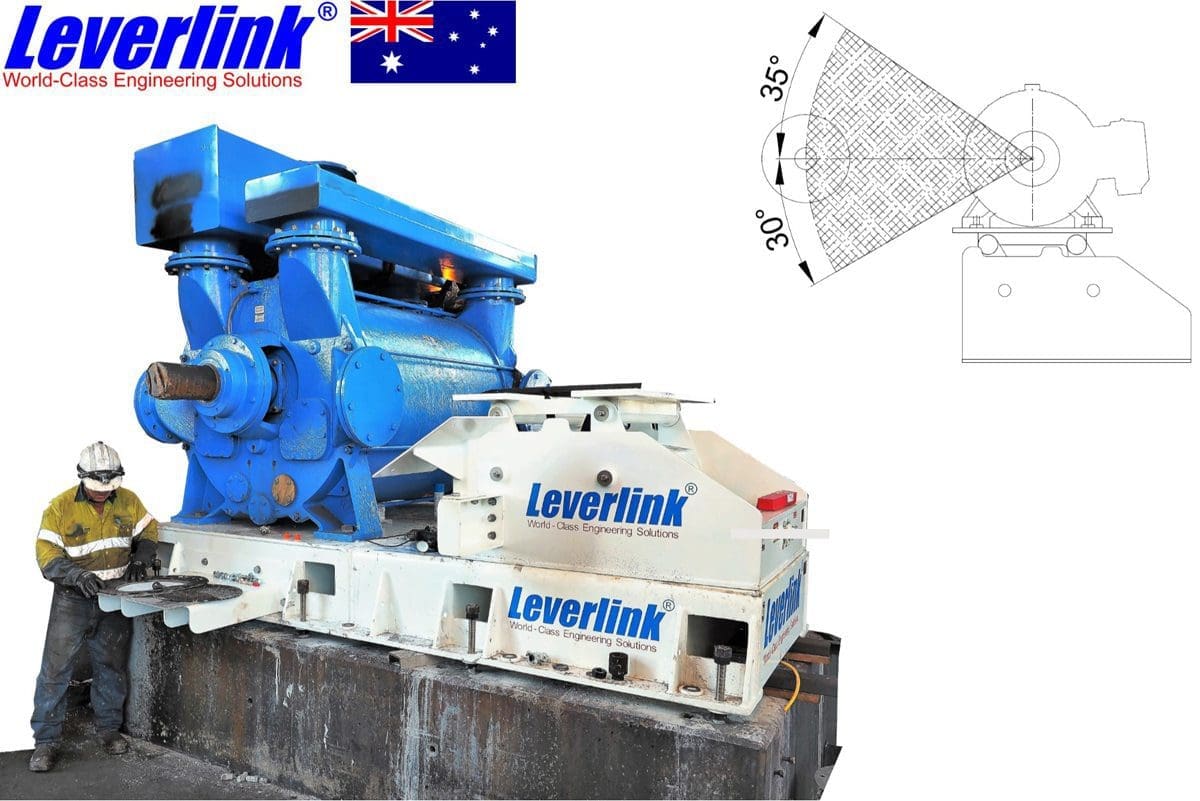

HA-314

To suit the following electric motor:

4 pole:               500kW

6 pole:               315kW to 450kW

Motor Frame:   D400L, D400LB, D400LS

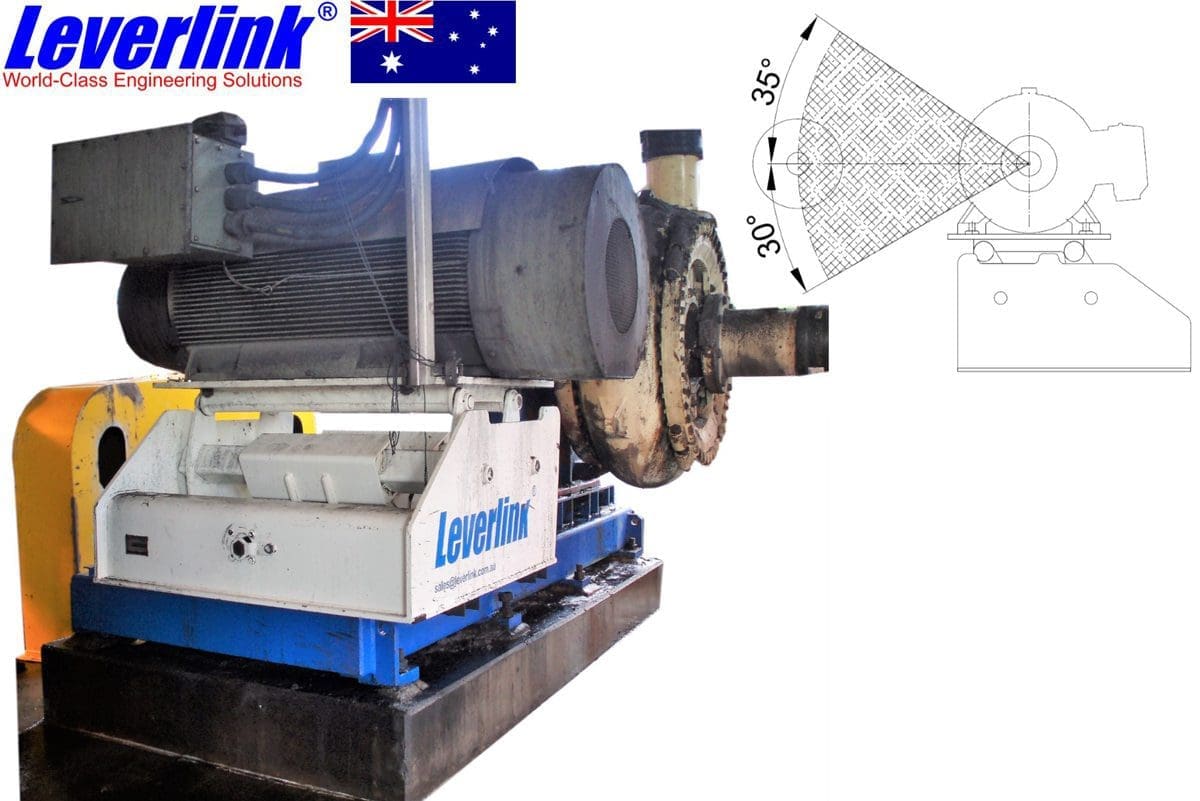

HA-315

To suit the following electric motor:

4 pole:               500kW

6 pole:               400kW to 450kW

Motor Frame:   D400LL

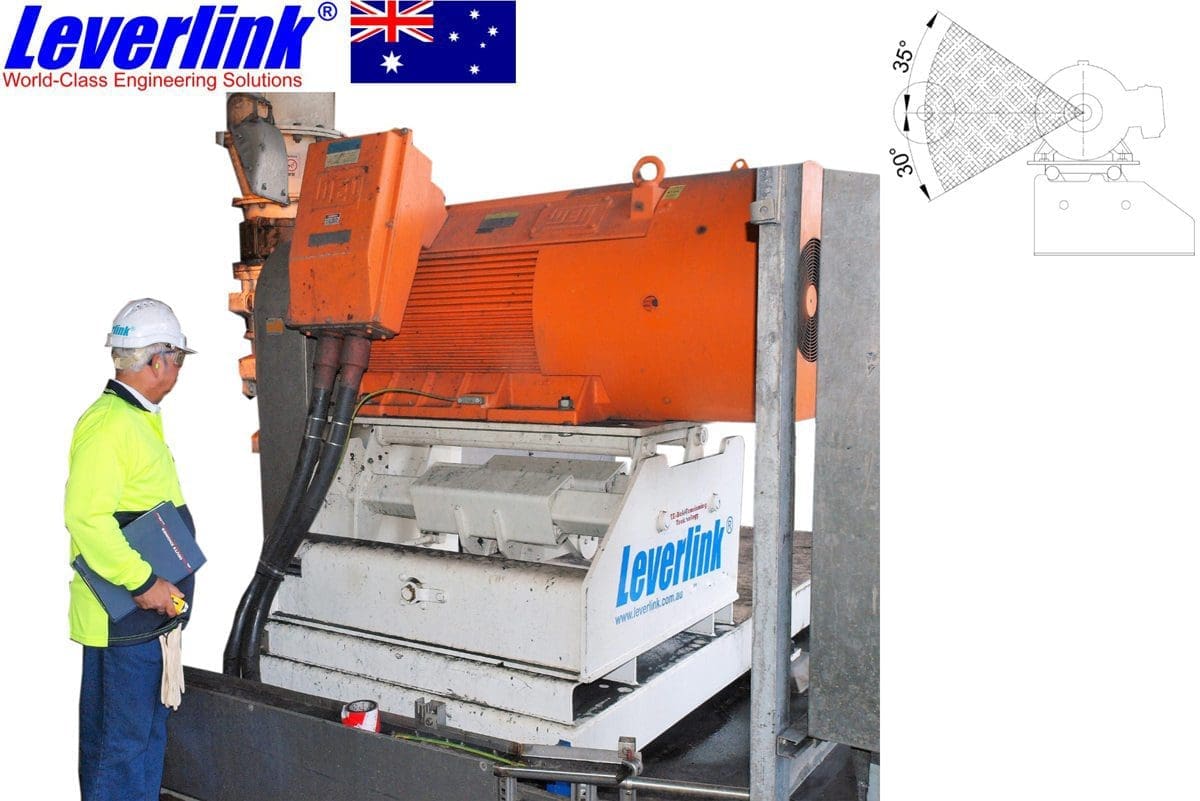

HA-316

To suit the following electric motor:

4 pole:

6 pole:               500kW to 630kW

Motor Frame:   D450L, D450LL

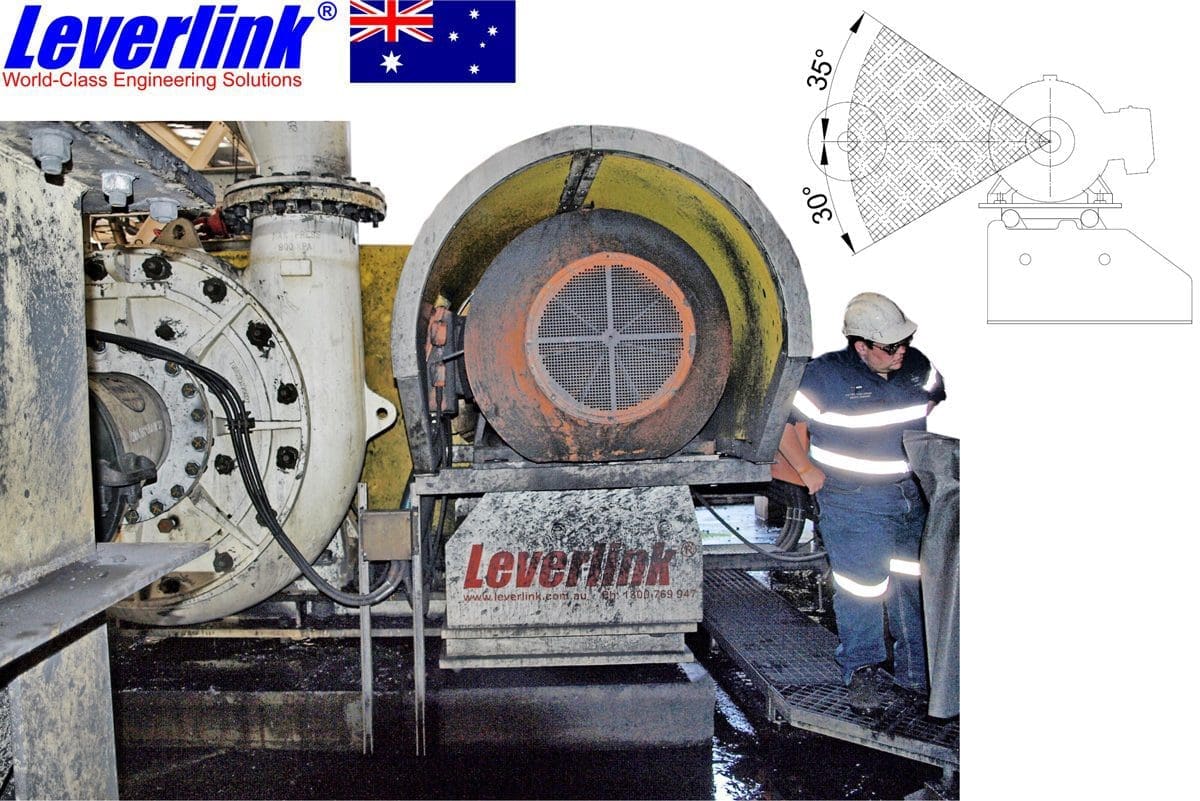

HA-317

To suit the following electric motor:

4 pole:

6 pole:               600kW

Motor Frame:   D500LL
