LEVERLINK 4G Series - Category B

« Back
The Leverlink 4G motor base for crushers, slurry pumps, fan drives, wood chip drives, and other vee belt drive applications.  Has been proven for over 20 years of design and manufacturing.  Models up to 250kW. Category B - recommended for STATIC applications

Series orientation:

Poles:

kW:

Frame size:

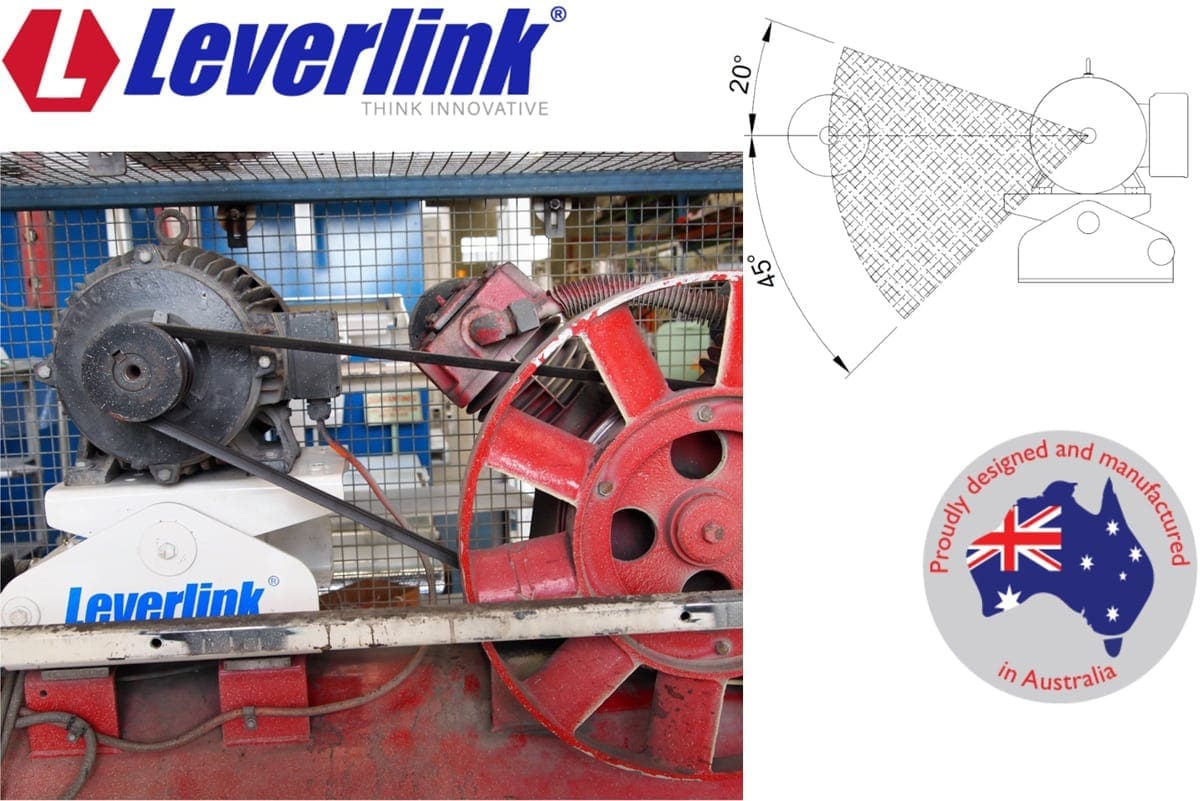

LEVERLINK 4G-1

To suit the following electric motor:

4 pole:               5.5kW to 7.5kW

6 pole:               3kW to 5kW

Motor Frame:   D132S, D132M

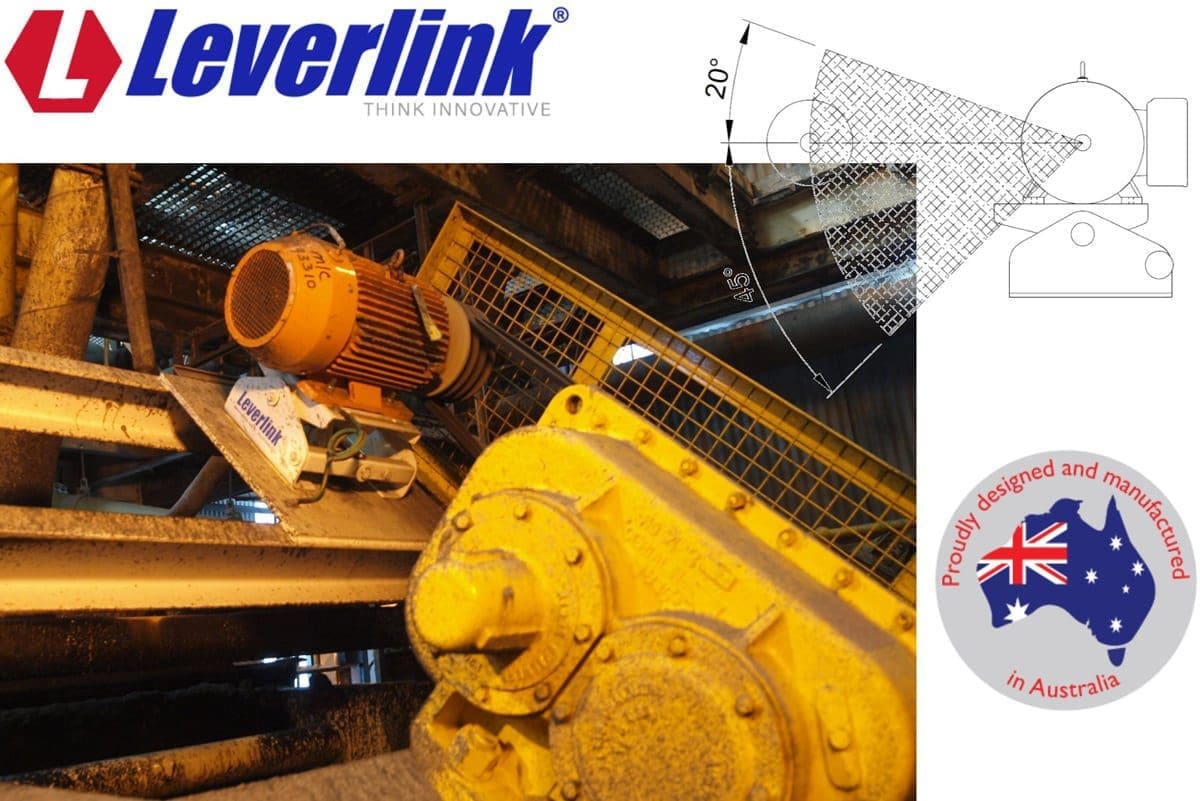

LEVERLINK 4G-2

To suit the following electric motor:

4 pole:              11kW to 15kW

6 pole:              7.5kW to 11kW

Motor Frame:  D160M, D160L

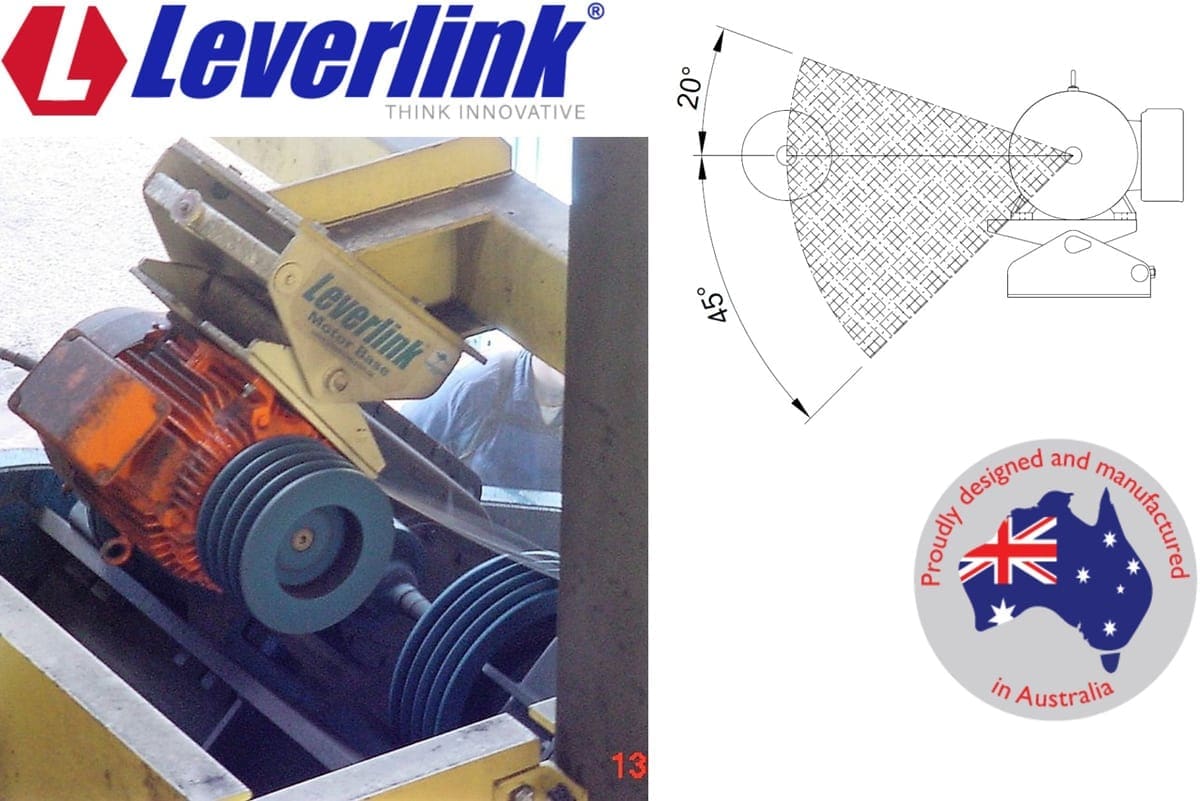

LEVERLINK 4G-3

To suit the following electric motor:

4 pole:               18.5kW to 22kW

6 pole:               15kW

Motor Frame:   D180M, D180L

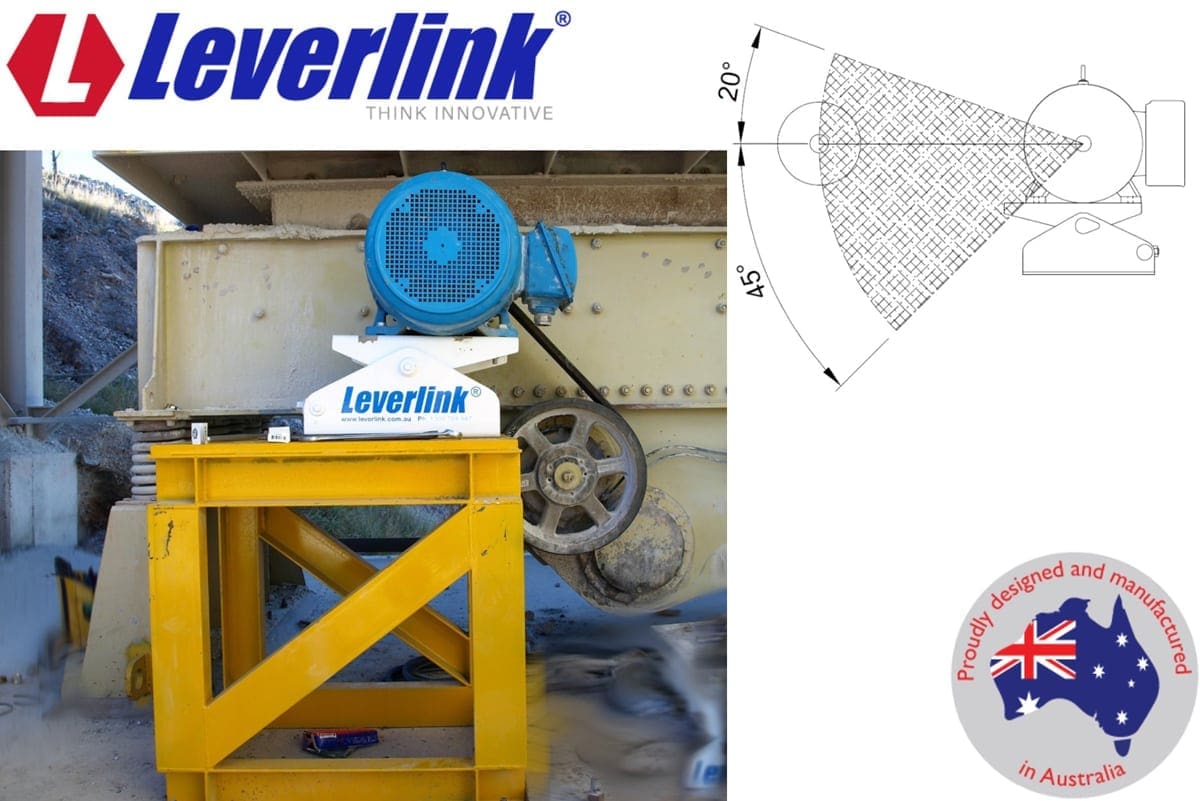

LEVERLINK 4G-4

To suit the following electric motor:

4 pole:               30kW

6 pole:               18.5kW

Motor Frame:   D200L

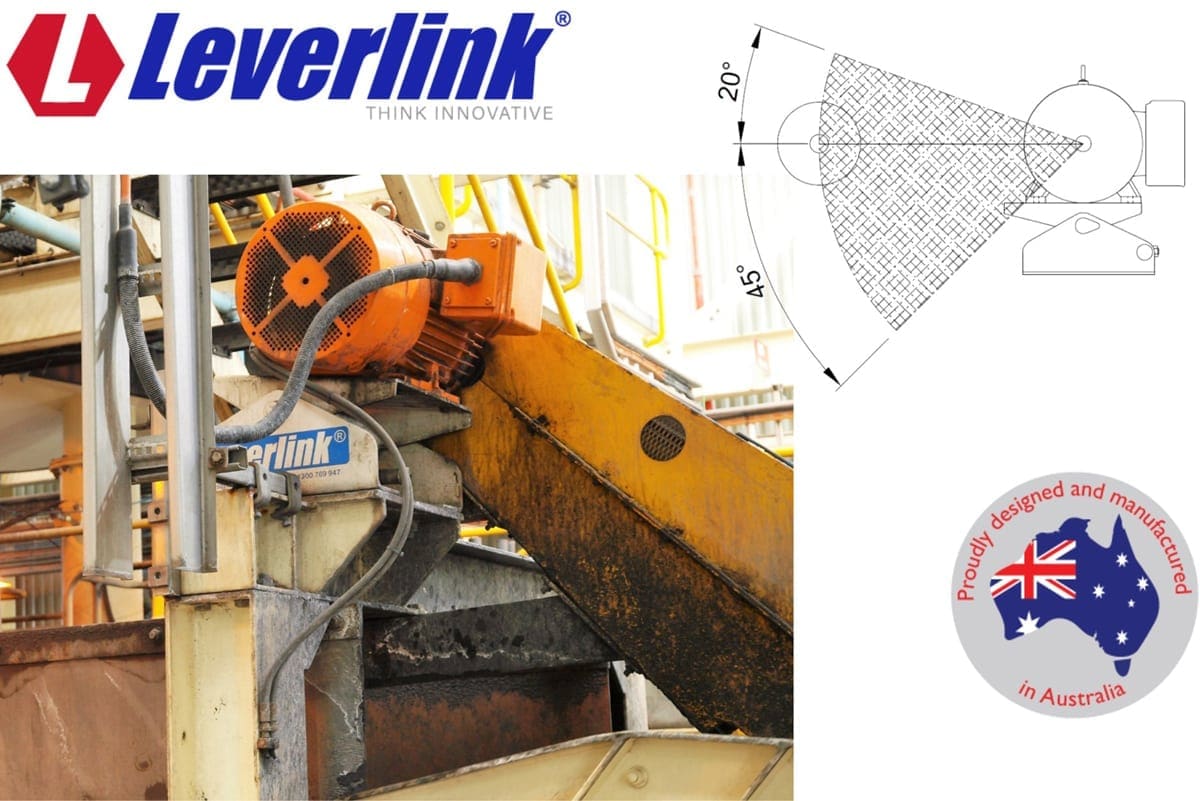

LEVERLINK 4G-5

To suit the following electric motor:

4 pole:               37kW to 45kW

6 pole:               30kW

Motor Frame:   D225S, D225M

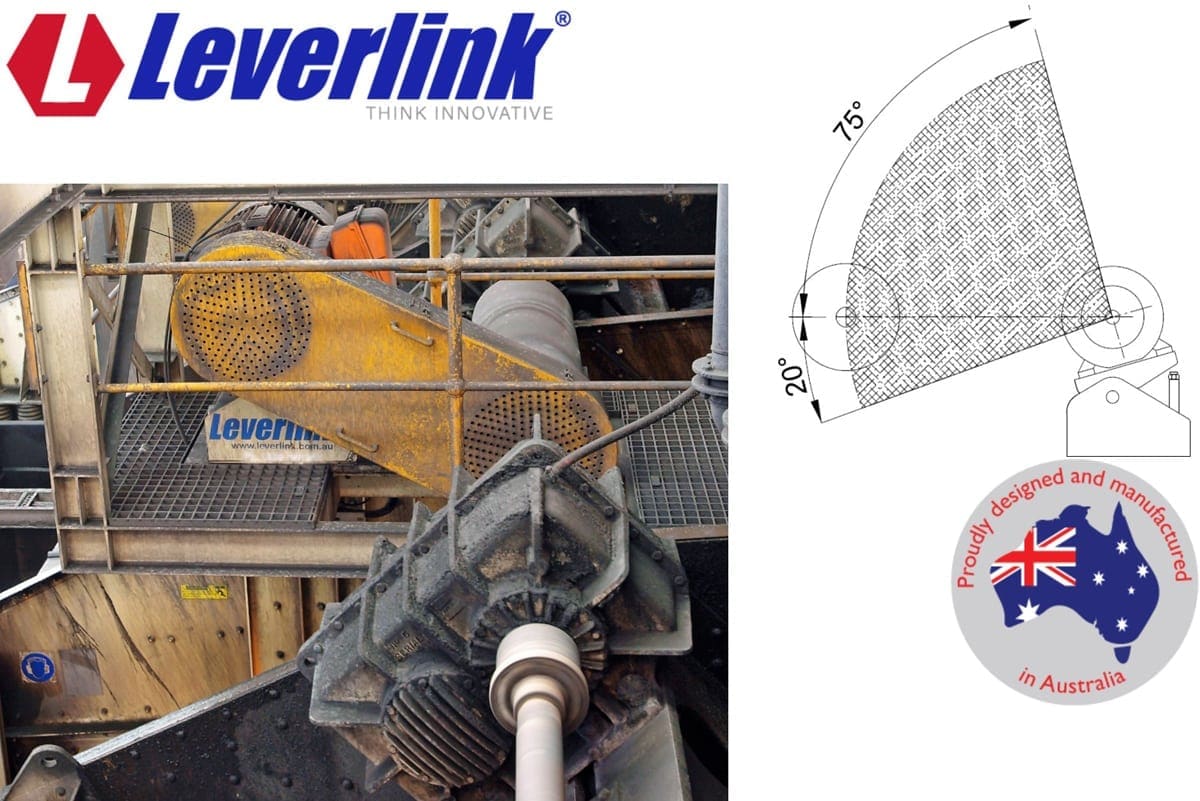

LEVERLINK 4G-6

To suit the following electric motor:

4 pole:               55kW

6 pole:               37kW

Motor Frame:   D250S

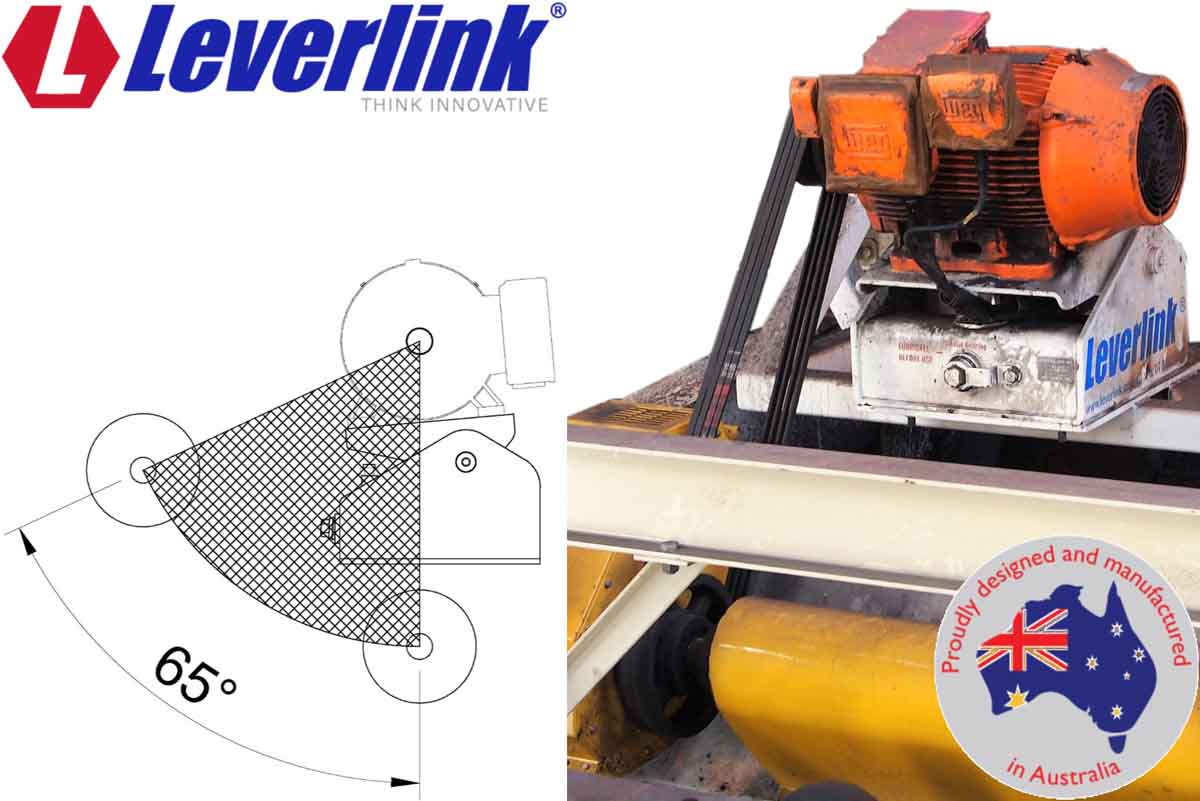

LEVERLINK 4G-6 T2

To suit the following electric motor:

4 pole:               55kW

6 pole:               37kW

Motor Frame:   D250S

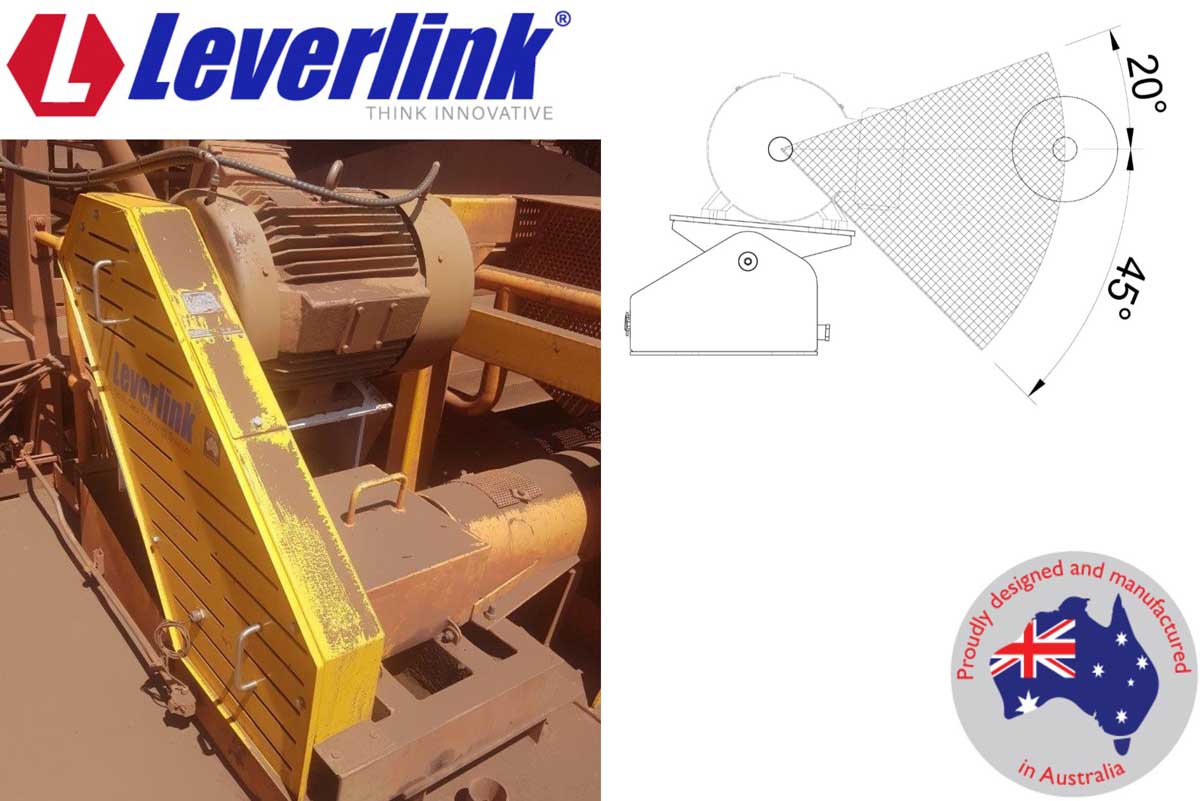

LEVERLINK 4G-6 RA

To suit the following electric motor:

4 pole:               55kW

6 pole:               37kW

Motor Frame:   D250S

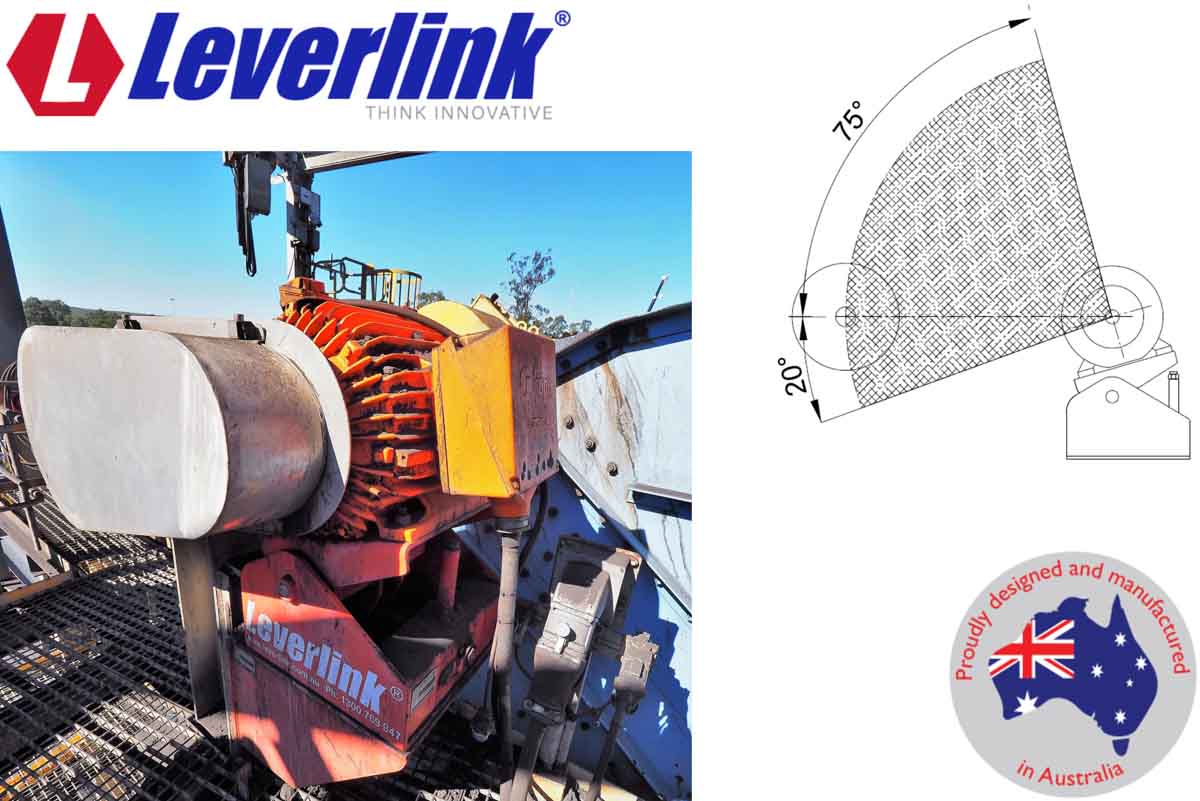

LEVERLINK 4G-7

To suit the following electric motor:

4 pole:               55kW to 75kW

6 pole:               37kW to 55kW

Motor Frame:   D250M

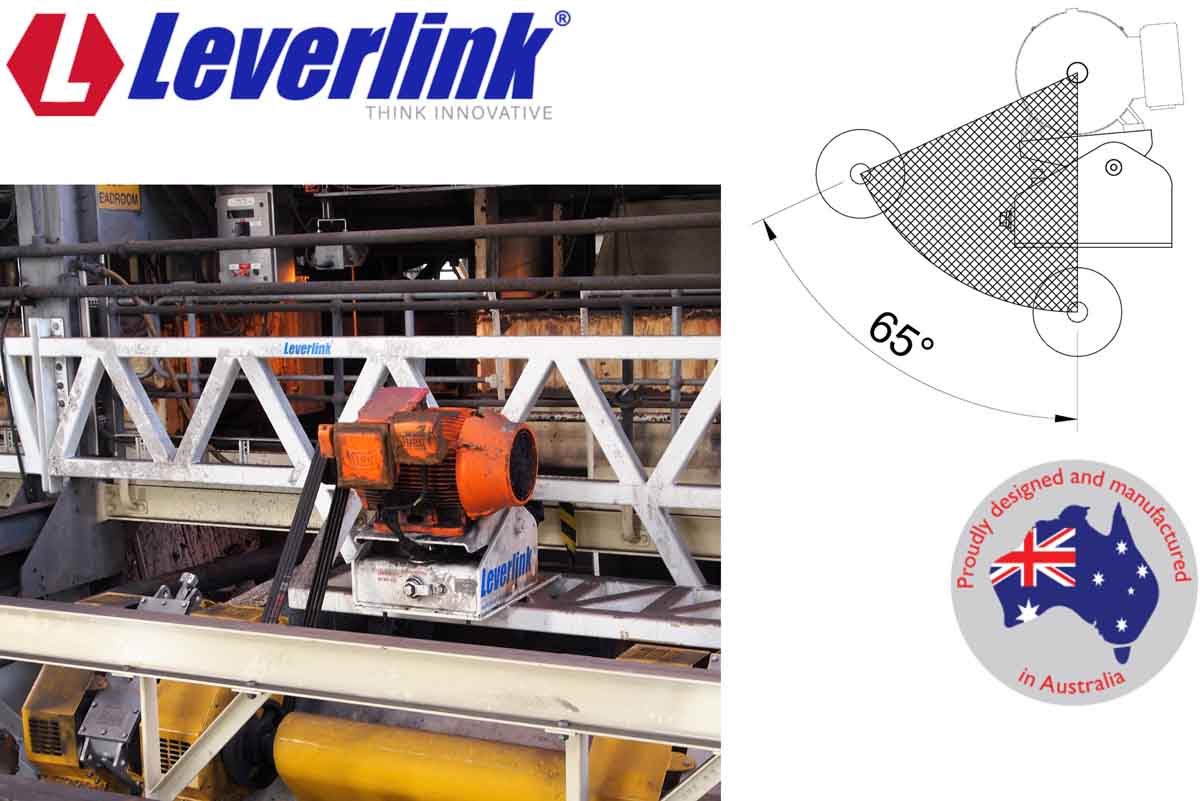

LEVERLINK 4G-7 T2

To suit the following electric motor:

4 pole:               55kW to 75kW

6 pole:               37kW to 55kW

Motor Frame:   D250M

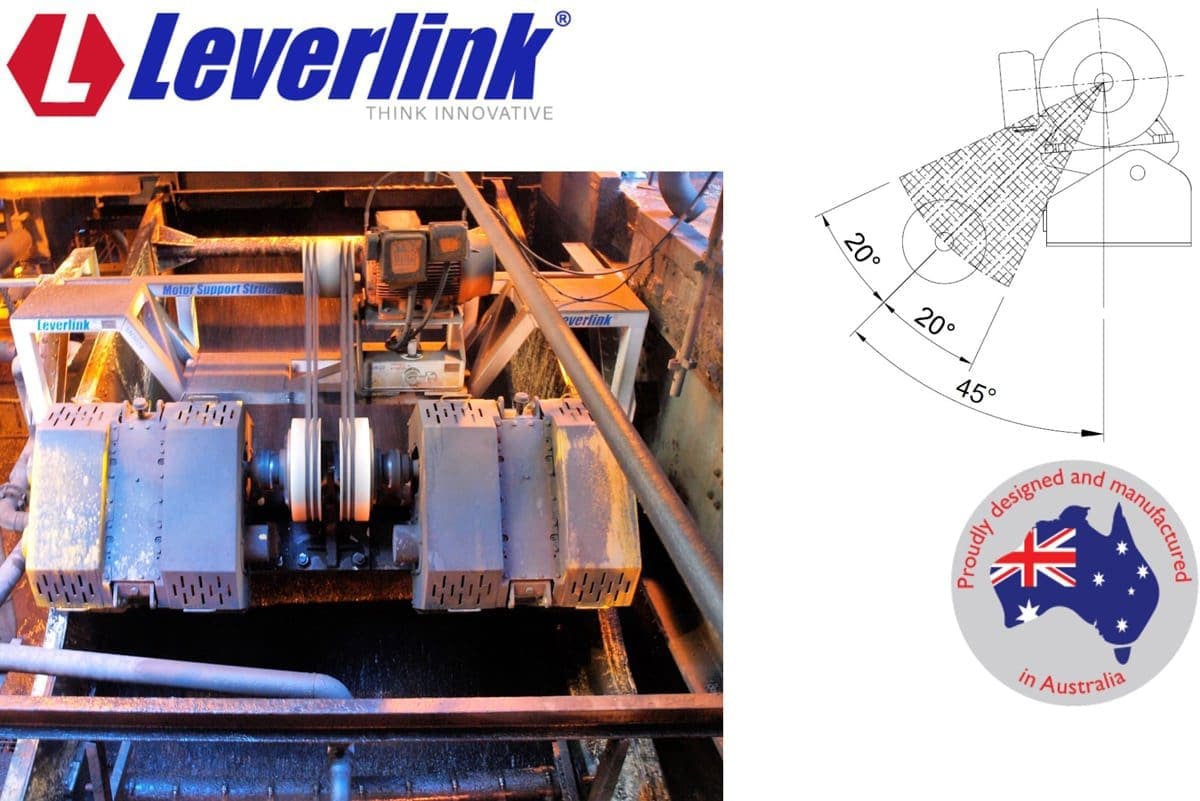

LEVERLINK 4G-8

To suit the following electric motor:

4 pole:               75kW to 90kW

6 pole:               45kW to 55kW

Motor Frame:   D280S

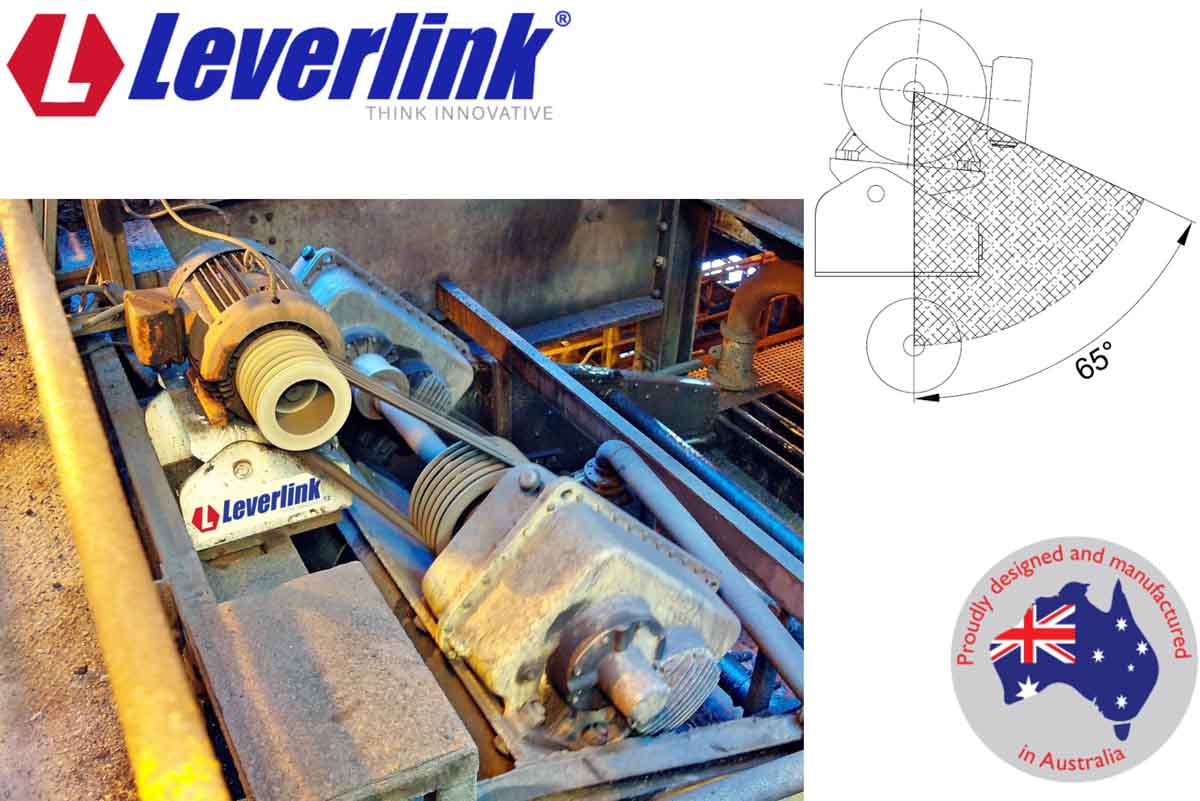

LEVERLINK 4G-8 T2

To suit the following electric motor:

4 pole:               75kW to 90kW

6 pole:               45kW to 55kW

Motor Frame:   D280S

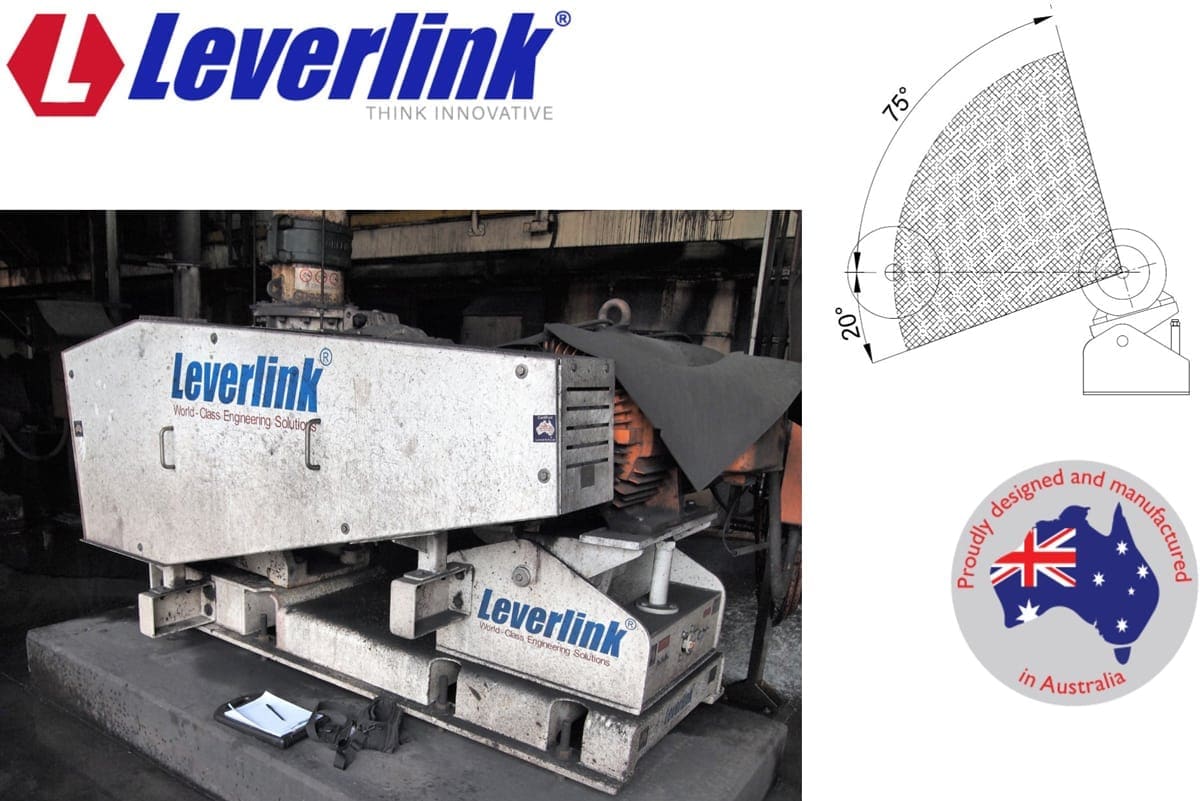

LEVERLINK 4G-9

To suit the following electric motor:

4 pole:               90kW to 100kW

6 pole:               55kW to 75kW

Motor Frame:   D280M

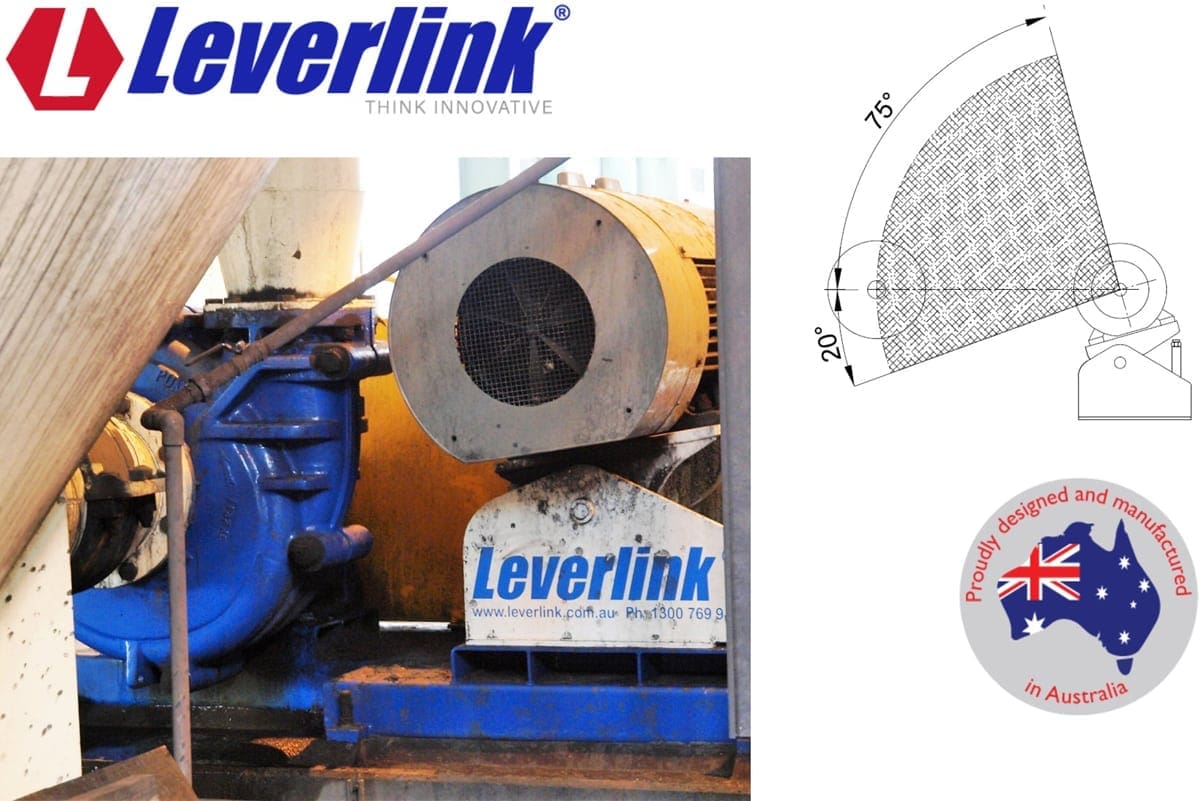

LEVERLINK 4G-10

To suit the following electric motor:

4 pole:               110kW to 132kW

6 pole:               75kW to 90kW

Motor Frame:   D315S

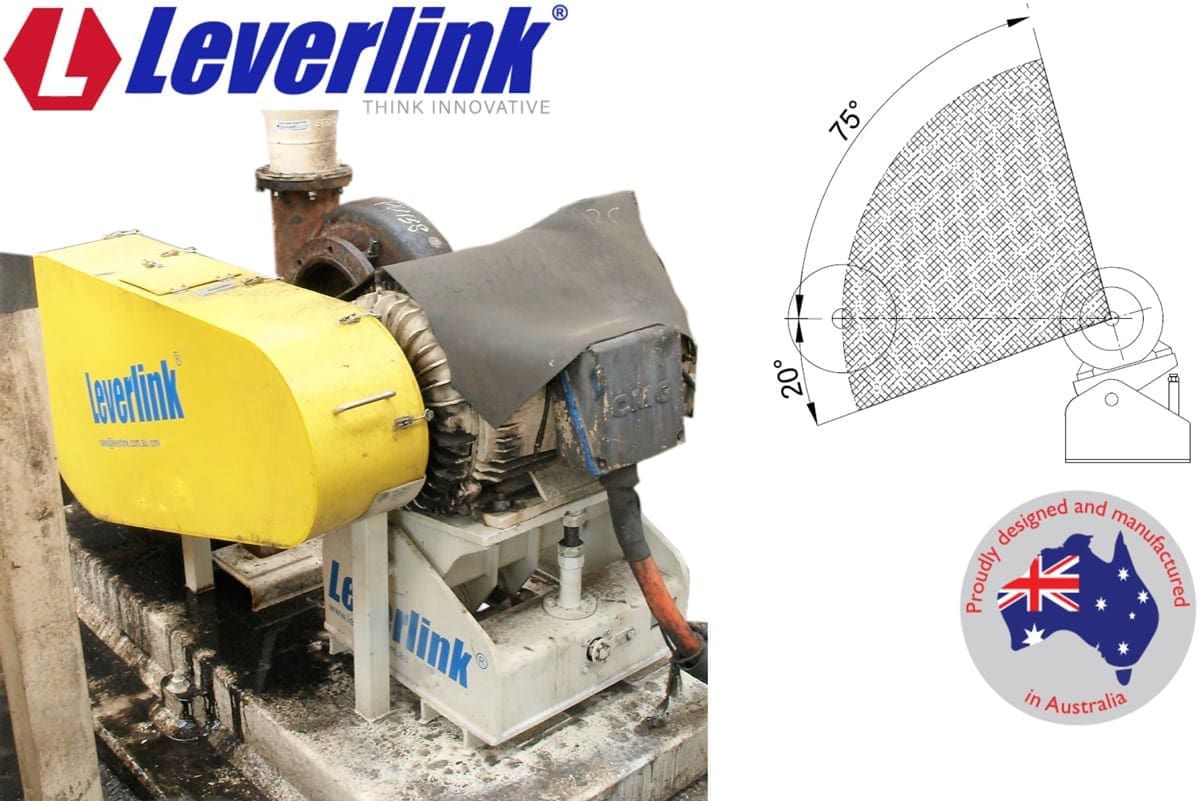

LEVERLINK 4G-11

To suit the following electric motor:

4 pole:               132kW to 160kW

6 pole:               90kW to 160kW

Motor Frame:   D315M

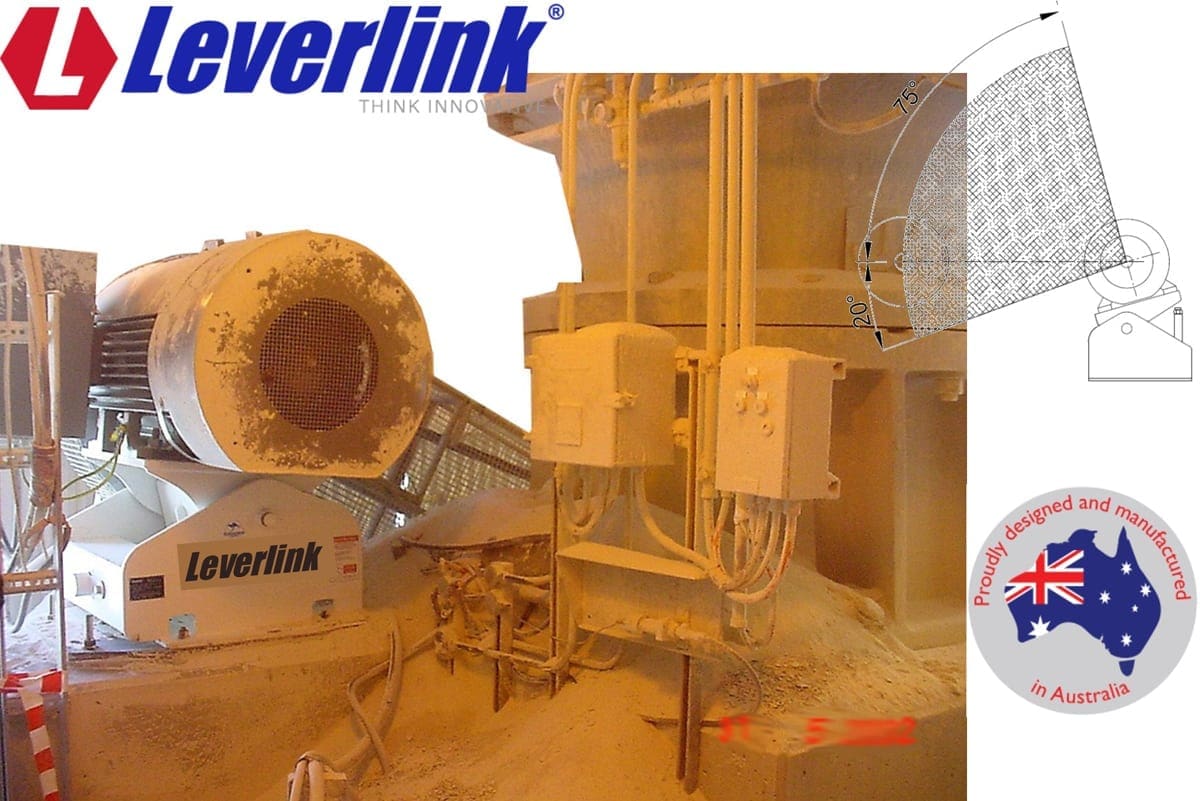

LEVERLINK 4G-12

To suit the following electric motor:

4 pole:               132kW to 280kW

6 pole:               90kW to 200kW

Motor Frame:   D315M, D315L
